ConfigMgr Settings Tab

AdminStudio 2023 | 25.0 | Application Manager (Home Tab) | Application View

Edition:Application Manager is included with AdminStudio Professional and Enterprise Editions.

The ConfigMgr Settings tab of the Application View lists an application’s ConfigMgr (Formerly called as System Center Configuration Manager) settings. The ConfigMgr Settings tab is only displayed if you have set up a connection to a ConfigMgr (Formerly called as System Center Configuration Manager) server.

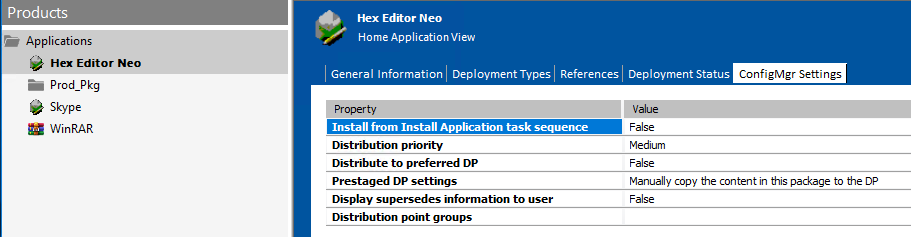

SCCM Settings Tab of Application View

The SCCM Settings tab includes the following properties:

SCCM Settings Tab

Properties

Description

Install from Install Application task sequence

Select True to deploy this application when deploying an operating system, as part of an Install Application task sequence. Select False to install this application manually.

Distribution priority

When you are sending multiple packages to a distribution point, those packages are sent in priority order, with higher priority packages being sent first. Use this property to specify a package’s priority. The following options are available:

• High
• Medium
• Low

Distribute to preferred DP

To enable on-demand content distribution to preferred distribution points, select True. When enabled, the content is distributed to all preferred distribution points in the list when a client requests the content for the package and the content is not available on any preferred distribution points.

Prestaged DP settings

Select one of the following options to specify how you want to distribute content to prestaged distribution points:

• Automatically download content when packages are assigned to DP—Select to ignore the prestage settings and distribute content to the distribution point.
• Download only content changes to the DP—Select to prestage the initial content to the distribution point, and then distribute content changes to the distribution point.
• Manually copy the content in this package to the DP—Select to always prestage content on the distribution point. (Default)

Display supersedes information to user

Set this option to True to allow users to see deployments for this application and all applications that it supersedes in the Application Catalog. This may result in the user installing multiple applications on the same device, if the requirements for these applications are met.

Distribution point groups

Specify the System Center 2012 Configuration Manager distribution point groups to which this application's content will be distributed.

Note:If AdminStudio is integrated with App Portal, this is a required field. If no distribution point group is entered, the App Portal administrator will be required to manually enter this information in ConfigMgr (Formerly called as System Center Configuration Manager) before App Portal will be able to distribute this application.
