About Automated Application Converter Project Files

AdminStudio 2023 | 25.0 | Automated Application Converter

All of the selections that you make on wizard panels or in the Automated Application Converter interface are saved in an XML-based project file: ProjectName.aacx. You can also choose to modify project settings by editing this XML file.

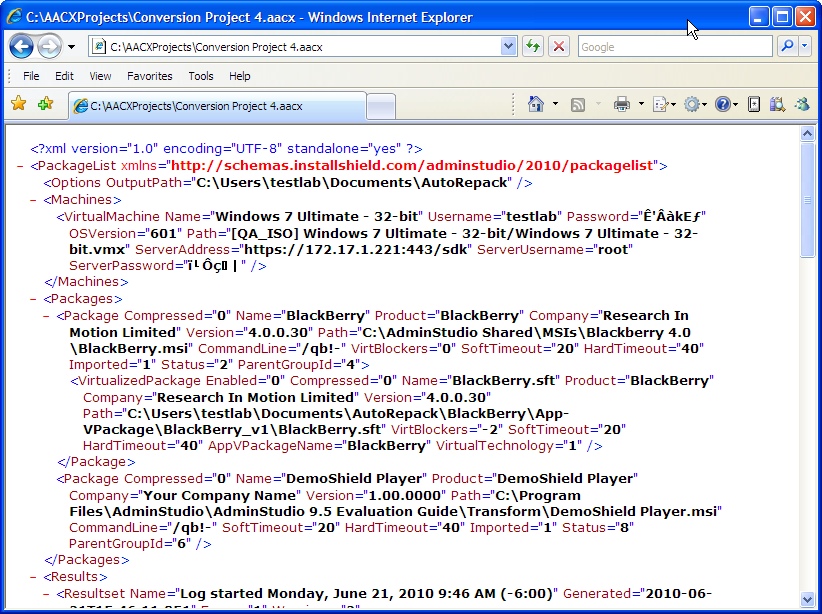

Sample Project File

Note:To both launch the Automated Application Converter and open a project, you can double-click a project file in Windows Explorer.

As shown in the following example, each project file is enclosed within a <PackageList> element, and the major sub-elements of a project file are <Options>, <Machines>, <Packages>, and <Results>. All of the settings specified in the Automated Application Converter interface appear in this file.

Elements Comprising an Automated Application Converter Project File

Elements

<PackageList>

    <Options />

    <Machines>

        <VirtualMachine />

        <VirtualMachine />

    </Machines>

    <Packages>

        <Package>

            <VirtualizedPackage />

        </Package>

        <Package>

            <RepackagedPackage />

        </Package>

    </Packages>

    <Results>

        <Resultset>

            <Machines>

                <UseMachine />

                <UseMachine />

            </Machines>

            <Packages>

                <UsePackage />

                <UsePackage />

            </Packages>

            <Messages>

                <LogItem />

                <LogItem />

            </Messages>

            <Result>

                <Messages>

                    <LogItem />

                    <LogItem />

                </Messages>

            </Result>

        </Resultset>

    </Results>

</PackageList>

The following table describes the major elements of a project file:

Major Elements of an Automated Application Converter Project File

Element

Description

PackageList

The root element of an Automated Application Converter project file is the <PackageList> element:

The PackageList element identifies the location of the XML namespace used by the application. XML namespaces provide a method to avoid element name conflicts.

Options

The <Options> element of a project file identifies the output location of the converted packages and identifies the currently selected output formats:

Machines

The <Machines> element contains multiple <VirtualMachine> elements, which identify the virtual machines that you have added to the project:

Packages

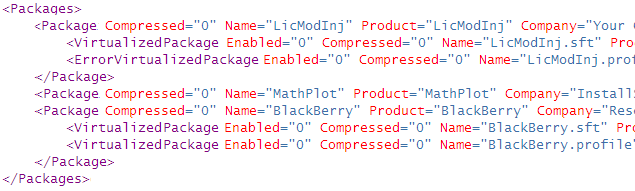

The <Packages> element contains multiple <Package> elements, which identify the packages that you have added to the project:

Each <Package> element can have multiple <RepackagedPackage>, <VirtualizedPackage>, and <ErrorVirtualizedPackage> elements.

Results

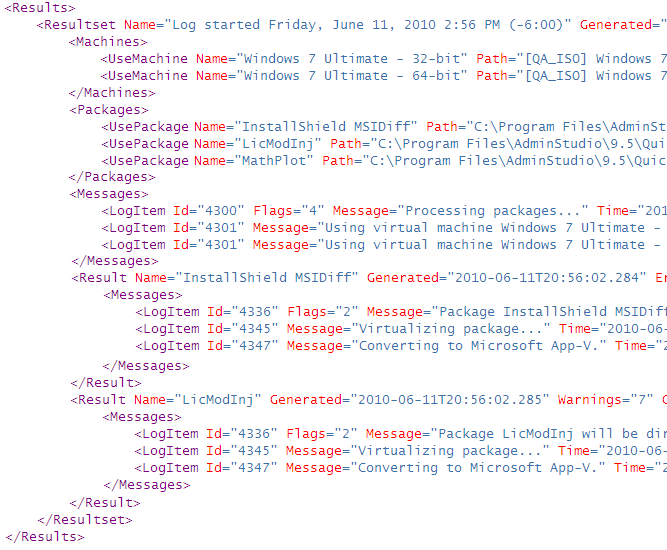

The <Results> element contains multiple <Resultset> elements, each of which contains information on a conversion run:

• Each <Resultset> element of a <Results> element includes information on <Machines>, <Packages>, <Messages>, and multiple <Result> elements for that run.
• Each <Result> element of a <Resultset> element contains information on the conversion run for an individual package.
