App-V Server Connection Groups Dialog Box
AdminStudio 2023 R2 SP1 | 26.01 | Application Manager
App-V Server virtual environments are called connection groups. You can create App-V 5.0 connection groups to generate connections between virtualized applications that allow the applications to communicate with each other while they run in the virtual environment.
The App-V Server Connection Groups dialog box, which is opened by clicking the App-V Virtual Environments button in the ribbon and selecting App-V Server Environment, lists the connection groups that have already been defined. You click Add on this dialog box to create a new connection group or Edit to edit an existing connection group.

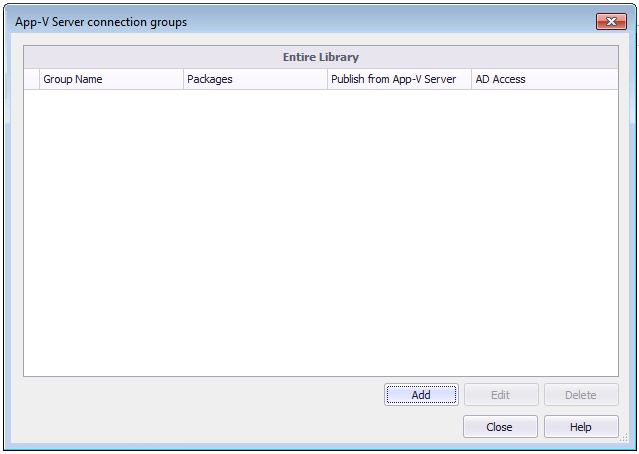

App-V Server Connection Groups Dialog Box
Note:You can also open the App-V Server Connection Groups dialog box by selecting an App-V 5.0 package in the tree, and then clicking in the Connection Group field on the Home Deployment Type View > App-V Deployment Data > Advanced Settings tab.
The App-V Server Connection Group dialog box includes the following properties:
|
Property |
Description |
|
Group Name |
Name that identifies the connection group. |
|
Packages |
List of packages in the connection group. |
|
Publish from App-V Server |
Icon indicating whether the Publish from App-V Server option is set to True or False. A checked checkbox indicates that it was set to True, while an empty checkbox indicates that it is set to False. |
|
AD Access |
Active Directory group that has access to this connection group. |
|
Add |
Click to open the Configure Connection Group dialog box where you can create a new connection group. |
|
Edit |
Click to open the Configure Connection Group dialog box where you can edit the selected connection group. |
