Setting App-V to MSIX Conversion Options
AdminStudio 2024 | 27.0 | Application Manager
Prior to using the Conversion Wizard to convert an App-V package to MSIX format, as described in Converting App-V Packages to MSIX Format, you first need to perform the following steps to set MSIX conversion options in Application Manager.
To set App-v to MSIX conversion options:
|
1.
|
In Application Manager, select Options on the Application Catalog menu. The Options dialog box opens. |
|
2.
|
Open the General options > Plugin Options tab. |
|
3.
|

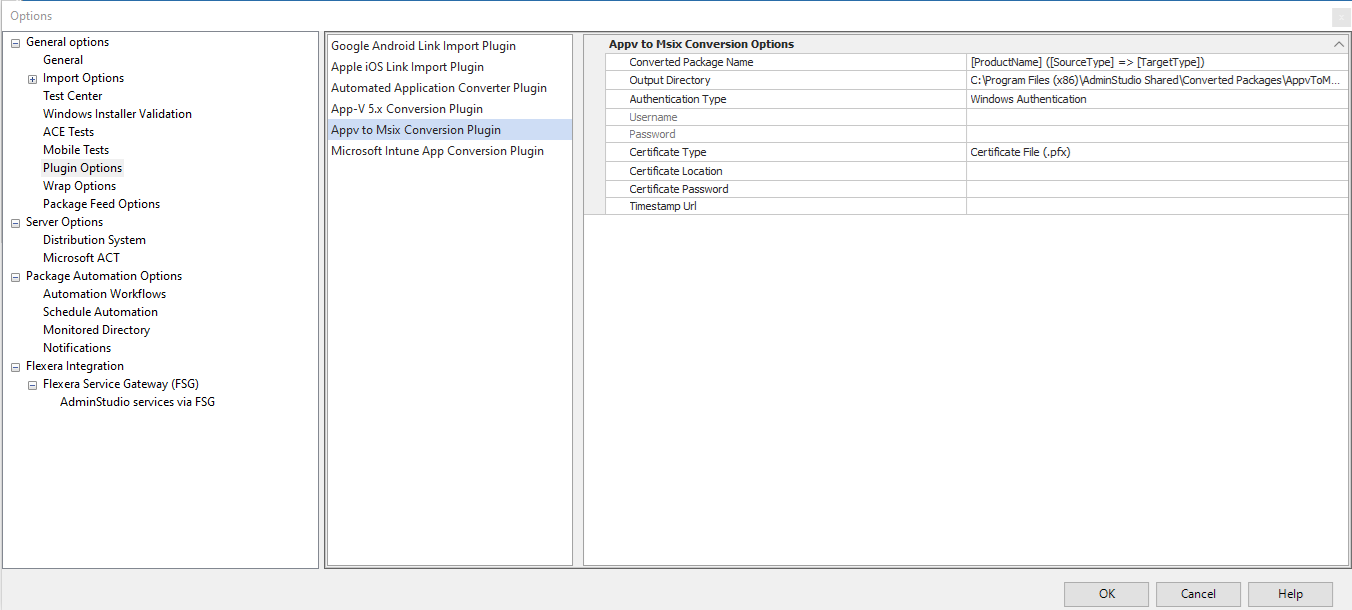

In the middle pane, select Appv to Msix Conversion Plugin. The Appv to Msix Conversion Options are displayed in the right pane. |
|
4.
|
In the Converted Package Name field, enter the format of the converted page name to differentiate it from the converted version of the package from the original version. By default, this field will be populated with: |
[ProductName] ([SourceType] => [TargetType])
|
5.
|
In the Output Directory field, Specify the output folder where you want the converted MSIX packages to be located. By default, the Output Directory is: |
C:\Program Files (x86)\AdminStudio Shared\Converted Packages\AppvToMsix\[Vendor]\[Product Name]\[Version]
Note:Supported placeholders are: Vendor, Product Name, Version, Setup Type, Platform, and Language.
|
6.
|
In the Authentication Type drop down field, choose one of the following: |
|
a.
|
Server Authentication—Choose this option if you want to use server login identification to log into this server. Then enter the appropriate Username and Password. |
|
b.
|
Windows Authentication—Choose this option if you want to use Windows network authentication (your network login ID) to log into this server. |
|
7.
|
In the Certificate Type drop down, choose one of the following. |
Important:By default, the Certificate File (.pfx) will selected.
|
a.
|
Certificate File (.pfx) |
|
•
|
Certificate Location—Specify a path to a valid PFX certificate file. |
|
•
|
Certificate Password—Specify the password for the PFX certificate file. |
|
•
|
Timestamp URL—Specify the valid Time Stamp Server URL. |
|
•
|
Certificate Store Location—In the Certificate Store Location drop down, select either User or Machine |
|
•
|
Certificate Store Name—In the Certificate Store Name drop down, select any one of the store name from the list. |
|
•
|
Certificate Subject—In the Certificate Subject drop down, select respective certificate subject from the list. |
