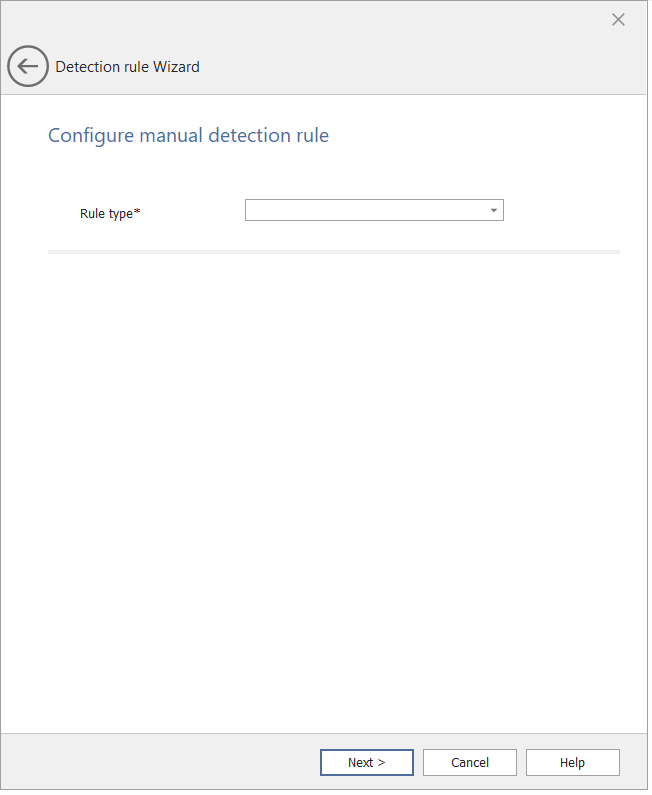

Configure Manual Detection Rule Panel

On the Configure Manual Detection Rule panel, select and specify the detection rule type.

Detection Rule Wizard / Configure Manual Detection Rule Panel

The Configure Manual Detection Rule panel includes the following Properties:

Detection Rule Wizard / Configure Manual Detection Rule Panel

Properties

Description

Rule type

Select one of the following Requirement type:

• MSI
• File
• Registry

MSI product code

Enter the valid Product code for the selected MSI rule type.

MSI product version check

Select this option if you want to verify the MSI product version in addition to the MSI product code.

By default this option will be unselected.

Path

Enter the path of the selected File.

File or folder

Enter the name of the file or folder that you are using in this method.

Detection Method

Select one of the following method for the selected File:

• File or folder exists
• Date modified
• Date created
• String (version)
• Size in MB

Key Path

Enter the path of the selected Registry type.

Value Name

Enter the register value in the text box.

Detection Method

Select one of the following method for the selected Registry:

• Key exists
• Key does not exits
• String comparison
• Version comparison
• Integer comparison

Operator

Select one of the following operators:

• Equals
• Not equal to
• Greater than or equal to
• Greater than
• Less than or equal to
• Less than

Value

Enter the value to define the condition.

Associated with a 32-bit app on 64-bit clients

Select this option to expand any path environment variables in the 32-bit context on 64-bit clients.

Unselect this option to expand any path variables in the 64-bit context on 64-bit clients. 32-bit clients will always use the 32-bit context. By default this option will be unselected.

Note:For the Registry Requirement Type:

• Select this option to search the 32-bit registry on 64-bit clients.
• Unselect this option to search the 64-bit registry on 64-bit clients. 32-bit clients will always search the 32-bit registry. By default this option will be unselected.
