Visual Assets View
AdminStudio 2022 | 23.0 | MSIX Editor
Visual Assets define the visual aspects of the Windows Store App: its default tile, logo images, text and background colors, splash screen and lock screen tile appearance.
Note:This view is currently read-only
Visual Assets (Read Only) view has the following visual aspects:
|
Asset Name |
Description |
Asset File Name |
|
Display Settings |
Describes the visual aspects of the Windows app package like Display Name, Short Name, Show Name, Description, Tile Background, Splash Screen Background, Supported Rotations, Lock Screen Notification, Recurrence, and Url Template on Tiles. |
|
|
Small Tile |
Specify a relative path to a small-sized tile background image. |
SmallTile.png |
|
Medium Tile |
Specify a relative path to a medium-sized (150x150) tile background image. |
Square150x150Logo.png |
|
Wide Tile |
Specify a 310x150 image file to be used for a wide tile, only when pinned and resized. If specified, this will allow the tile to be set to Wide. |
Wide310x150Logo.png |
|
Large Tile |
Specify a 310x310 image file to be used for a large tile, only when pinned and resized. If specified, this will allow the tile to be set to Large. |
LargeTile.png |
|
App Icon |
Specify a 44x44 image file to use as a small logo icon that is displayed in the left column of the Start Menu’s All Apps list. If an image file is not provided, InstallShield generates a small logo from the target's tile configuration or the application's icon. |
Square44x44Logo.png |
|
Splash Screen |
Defines the appearance of the splash screen, which is displayed by the app during launch. |
SplashScreen.png |
|
Badge Logo |
A logo image that is shown next to the badge to identify the app. This image must be monochromatic, of type .png, and measure 24 x 24 pixels. |
BadgeLogo.png |
|
Package Logo |
A path to a file that contains an image. This image appears in App installer, Partner Center, the “Report an app” option in the Store, the “Write a review” option in the Store. |
StoreLogo.png |

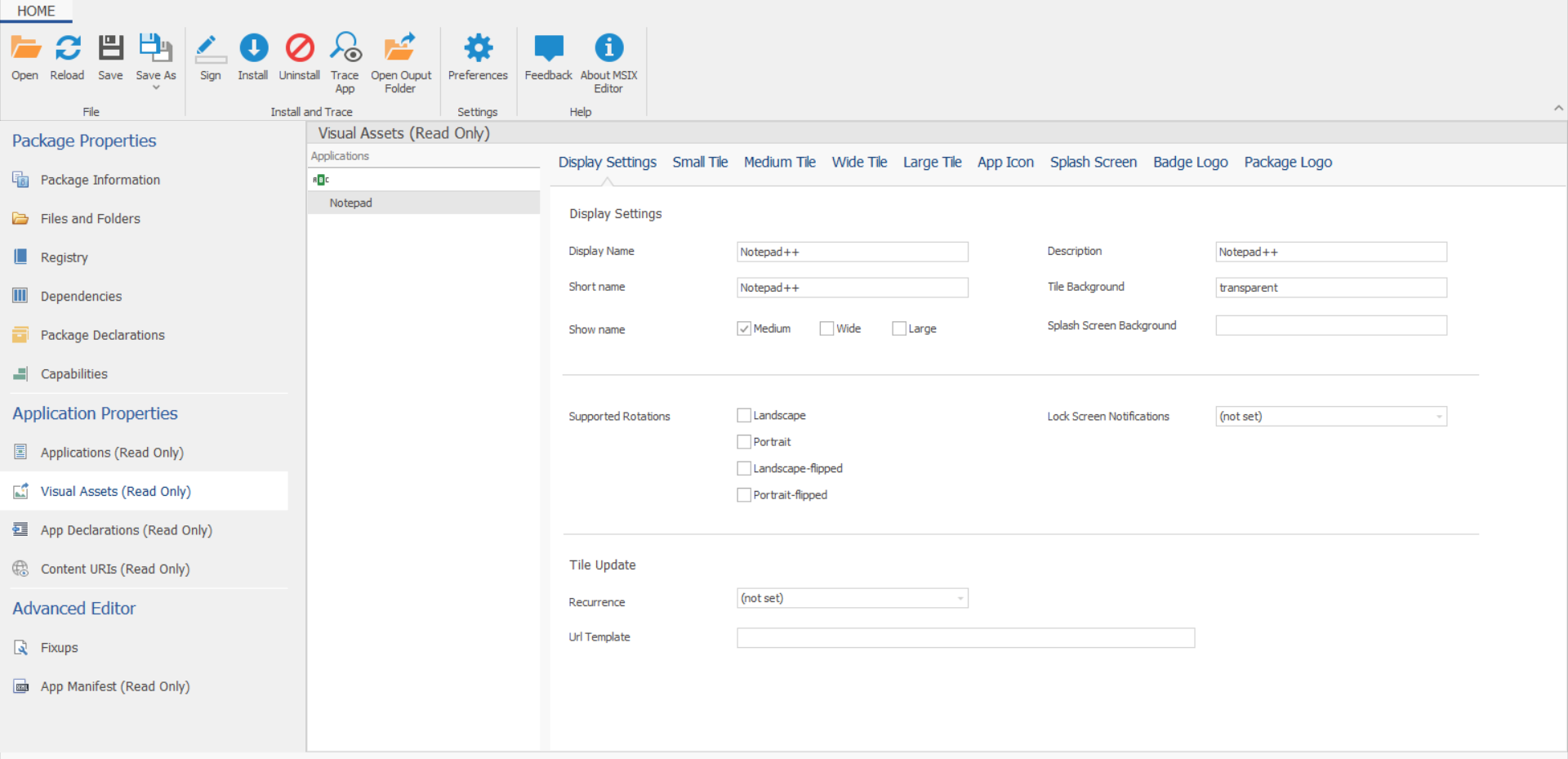

Display Settings
In the Display Settings, you can see the following details:
|
Field |
Description |
||||||||||||
|
Display Name |
Display name of the Application. |
||||||||||||
|
Short Name |
Short name of the Application. |
||||||||||||
|
Show Name |
Display the short name on medium, wide, or large tiles. |
||||||||||||
|
Description |
Description of the Application. |
||||||||||||
|
Tile Background |
Specifies the hex value or a color name for the tile background color. |
||||||||||||
|
Splash screen Background |
Specifies the hex value or color name for the splash screen background. |
||||||||||||
|
Supported Rotations |
Displays in one of the following supported rotations:
|
||||||||||||
|
Lock Screen Notification |
The lock screen notification setup for the application. |
||||||||||||
|
Recurrence |
Shows the recurrence of the application. |
||||||||||||
|
Url Template |
Shows the Url template. |
Note:: This view is currently read-only.

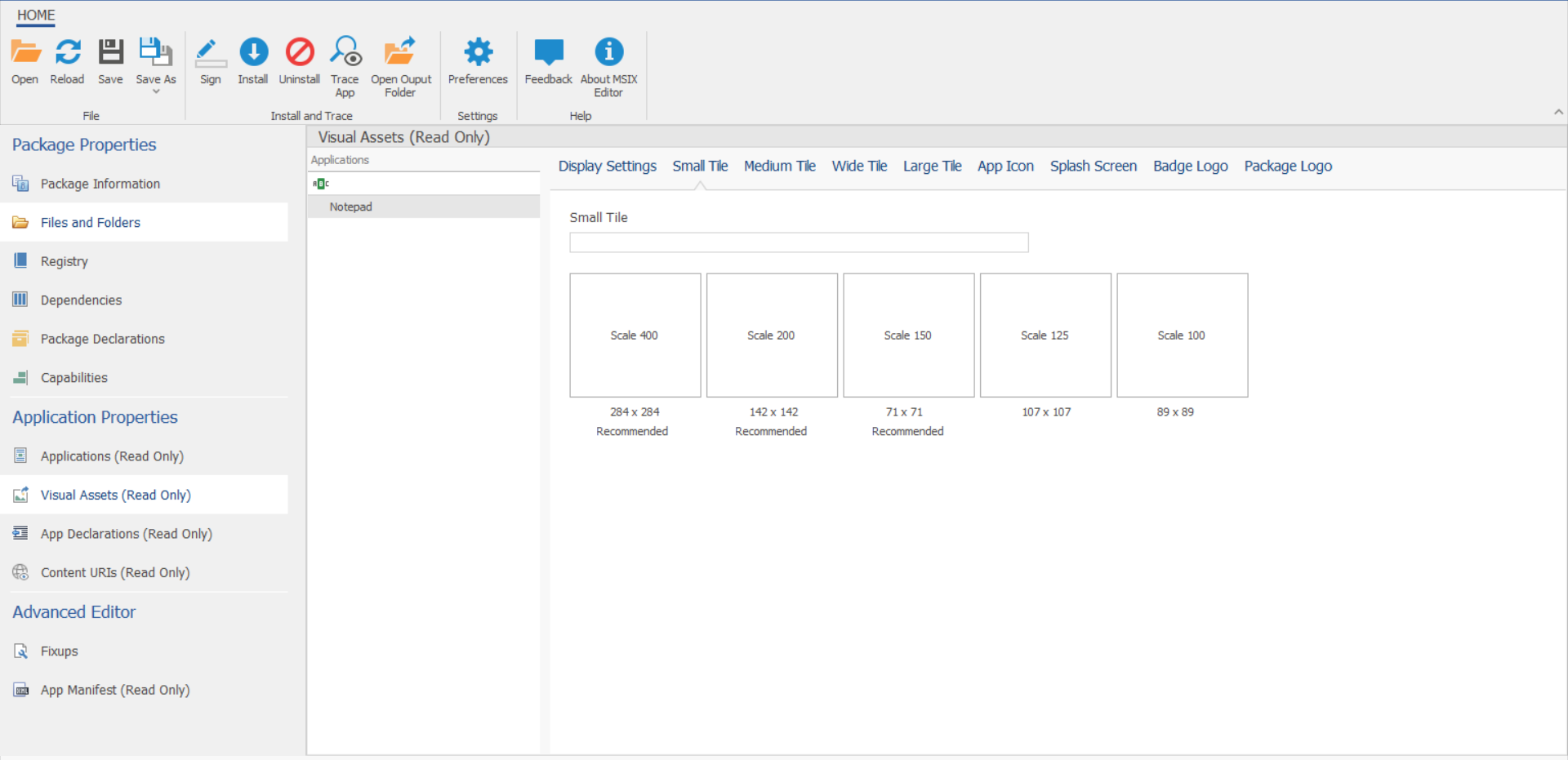

Small Tile
The small square version of the logo image.

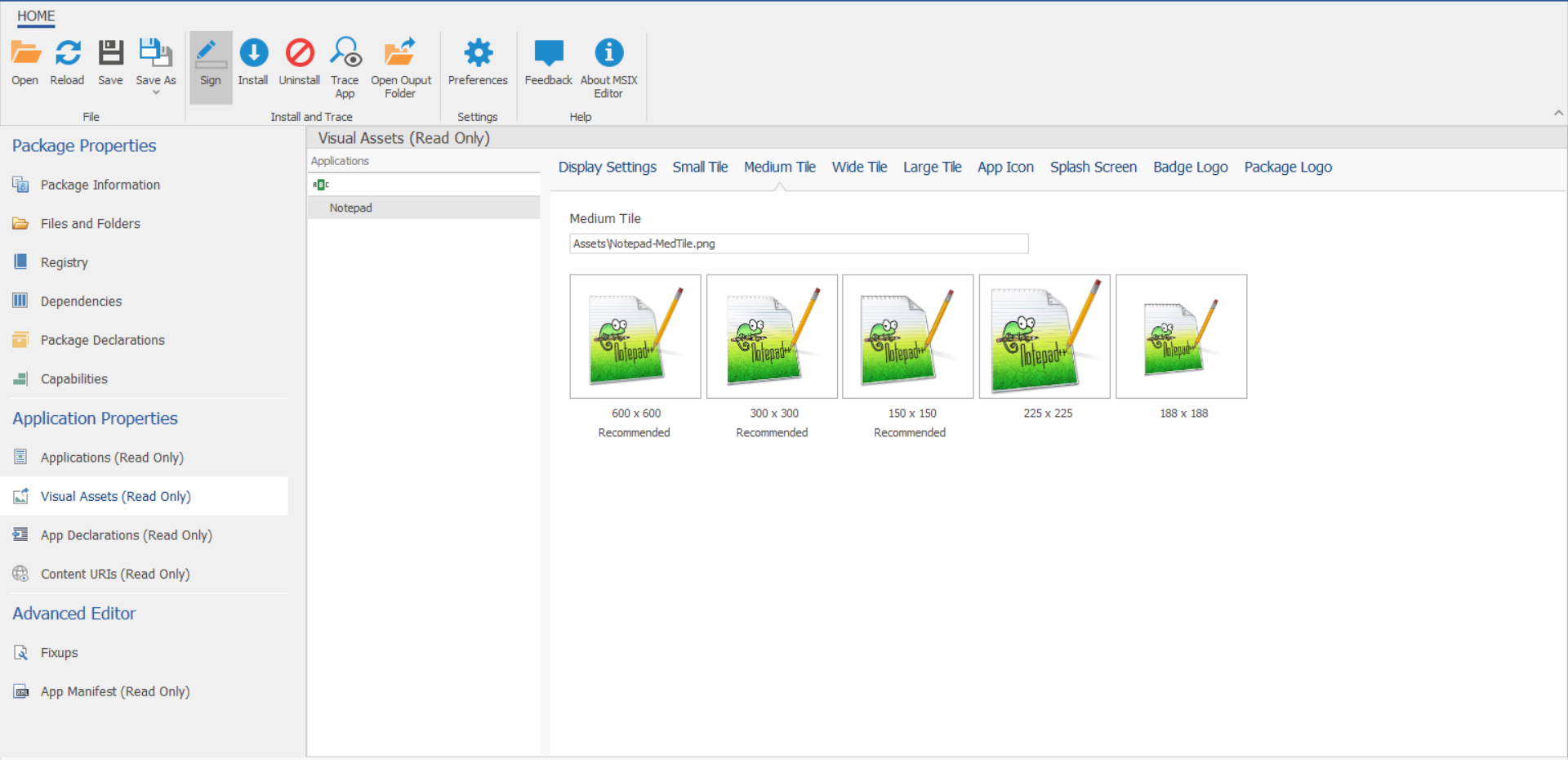

Medium Tile
A medium-size image used as the app's square tile.

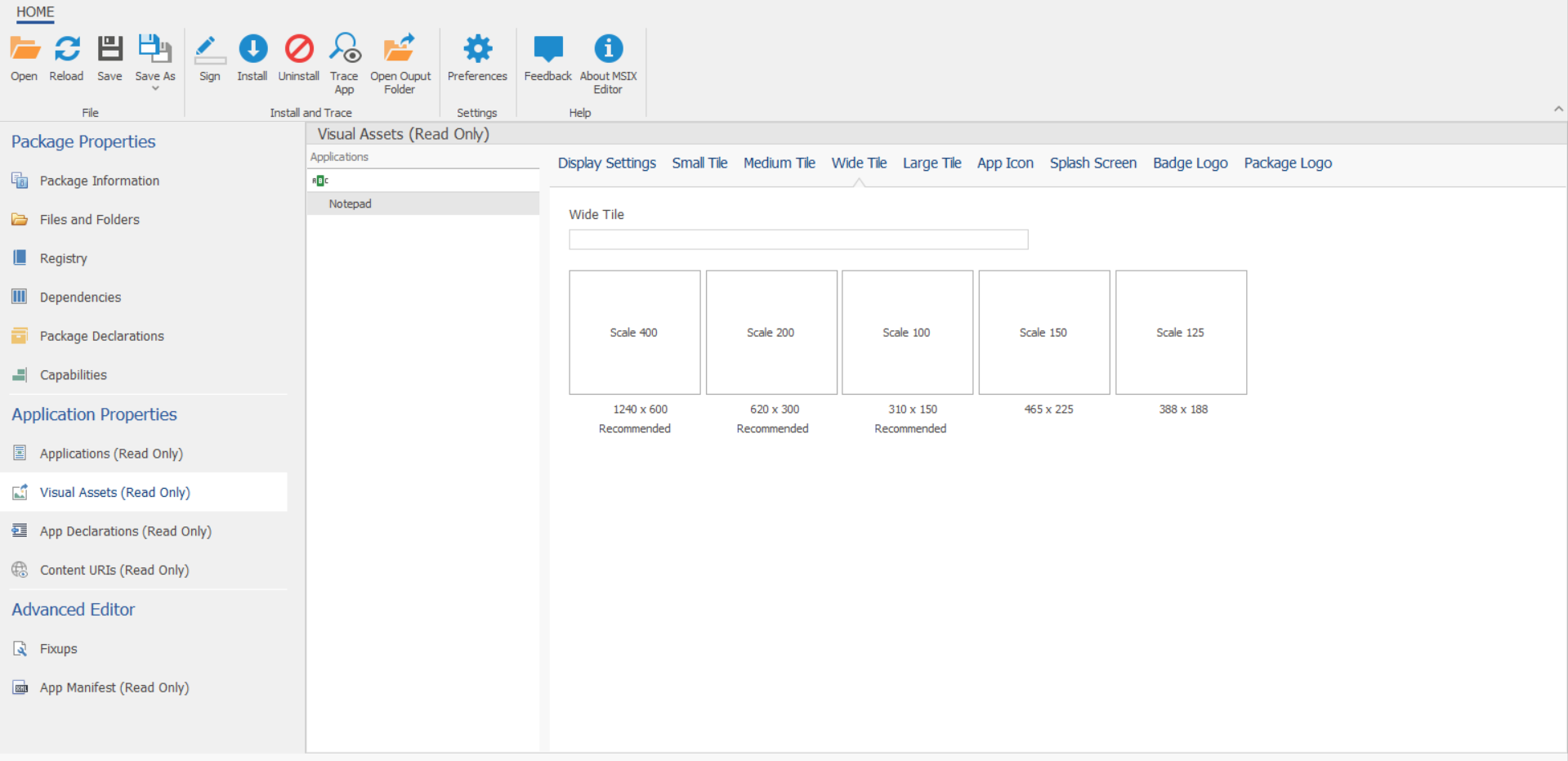

Wide Tile
These images are displayed when the tile is rendered in its wide format.

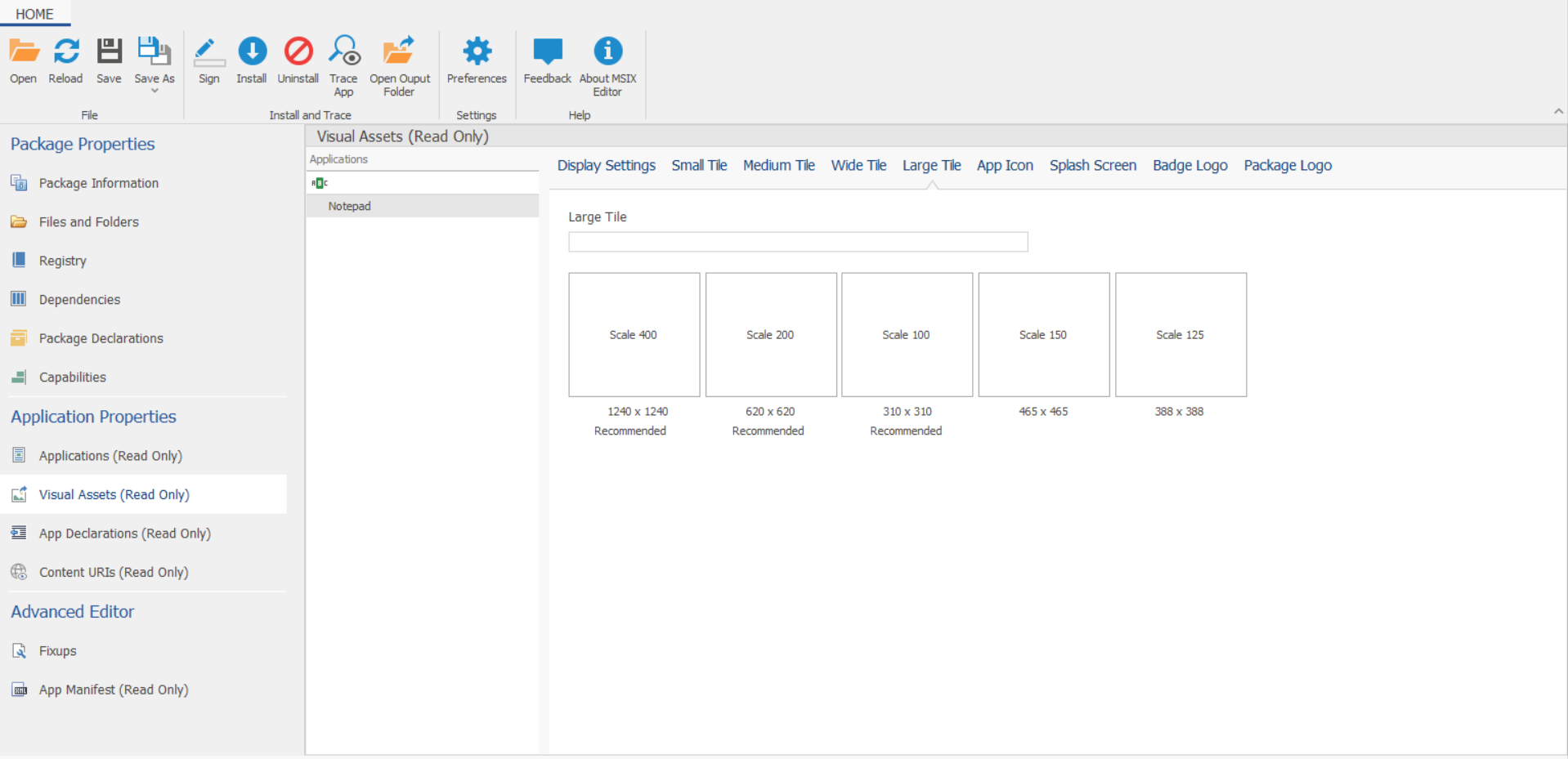

Large Tile
The large square version of the logo image.

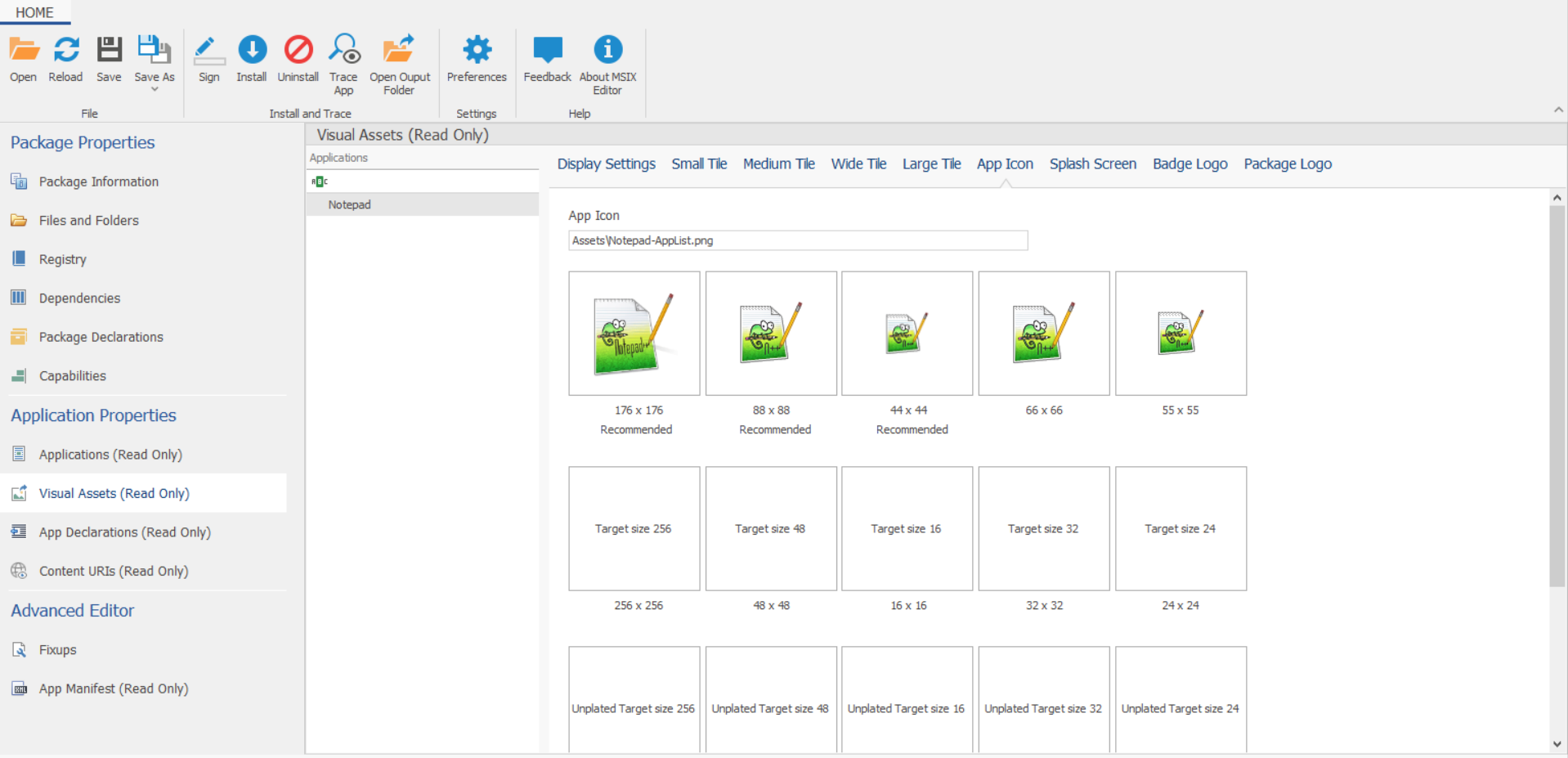

App Icon

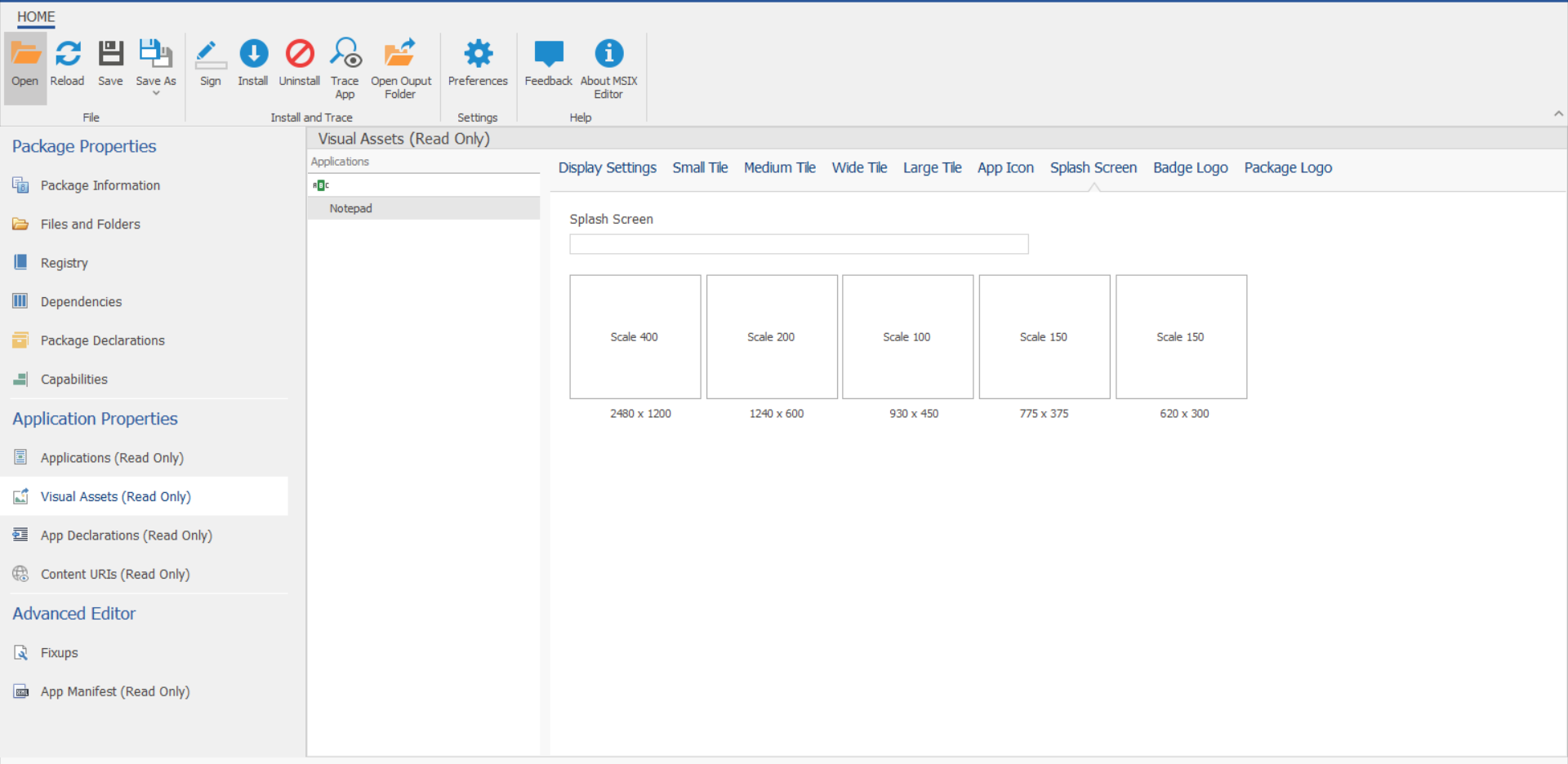

Splash Screen

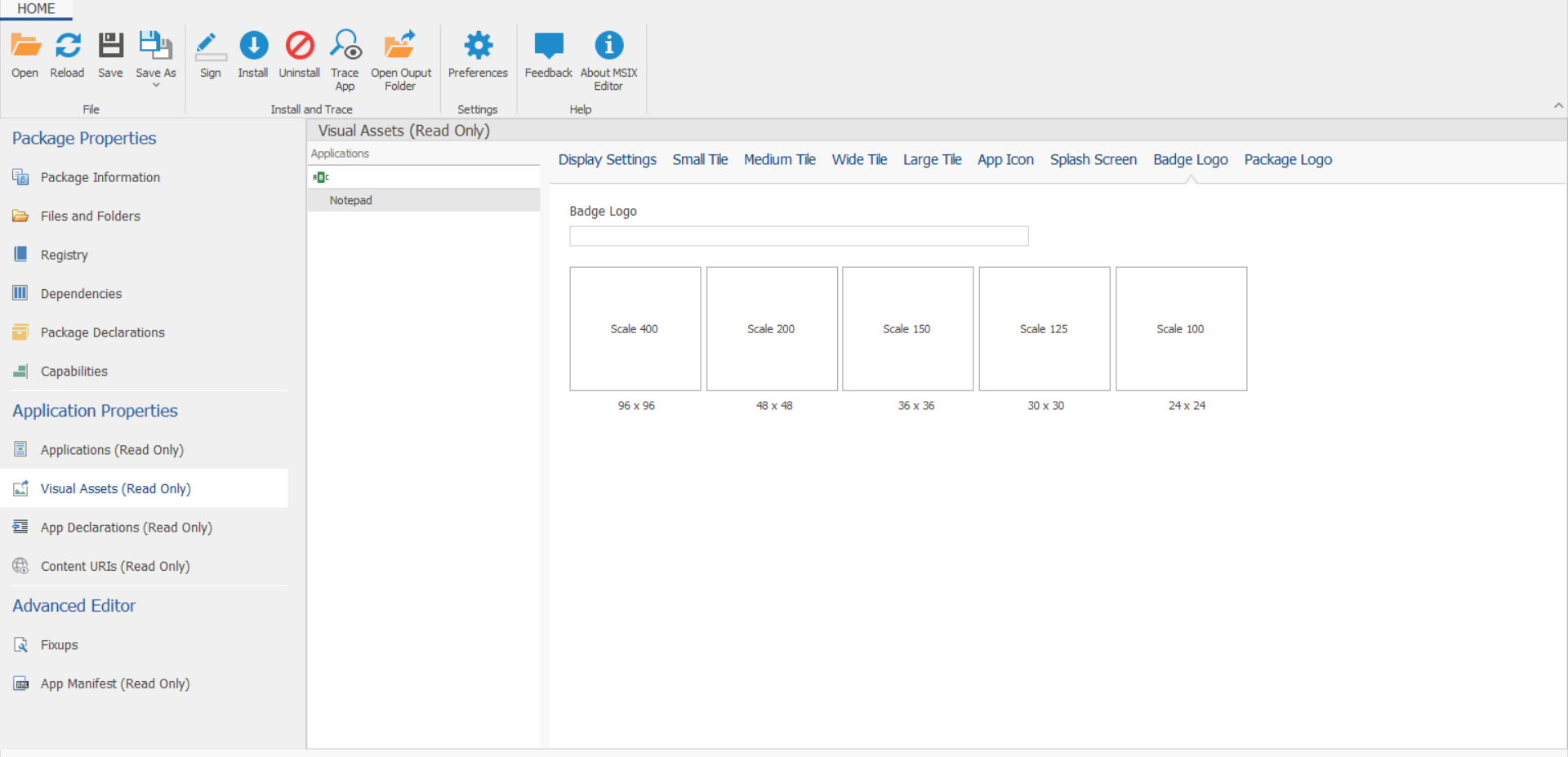

Badge Logo

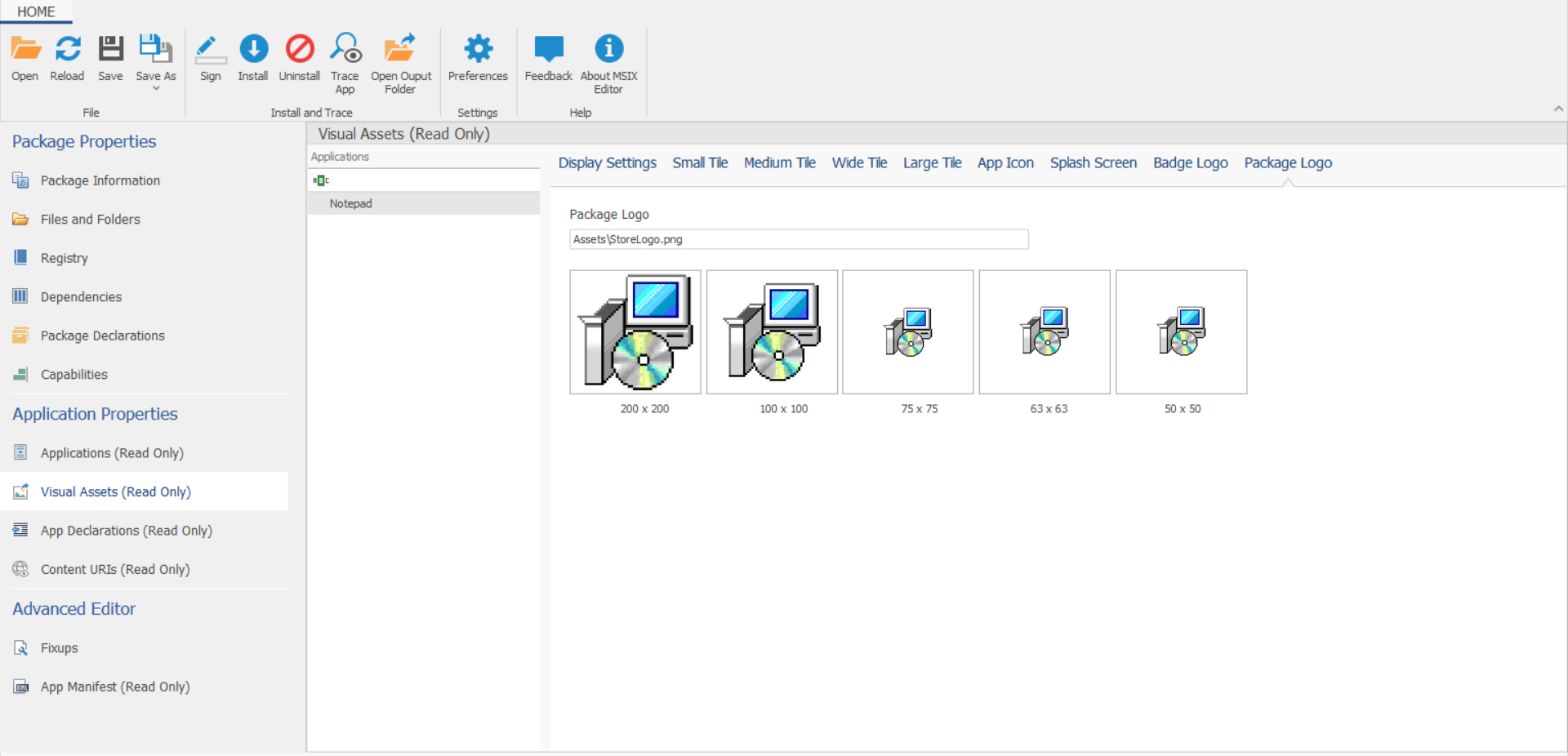

Package Logo
