Configuration Settings: Active Directory

AdminStudio Inventory and Rationalization 2016 | Workflow Manager 2016 / AdminStudio Configuration Wizard

On the Configuration Settings: Active Directory panel, you enter connection information to your enterprise’s Active Directory. AdminStudio Inventory and Rationalization will pull user names from Active Directory to associate with application usage information from System Center Configuration Manager.

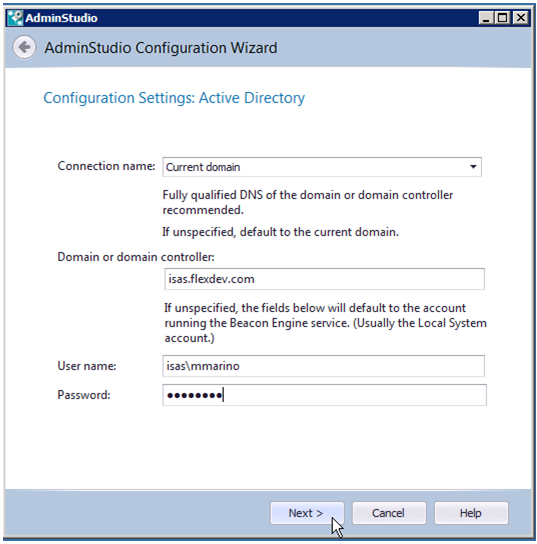

Configuration Settings: Active Directory Panel

The Configuration Settings: Active Directory panel includes the following properties:

Create or Update an AdminStudio Database Panel / AdminStudio Configuration Wizard

Property

Description

Connection name

Enter the name of your enterprise’s Active Directory connection.

Domain or domain controller

Enter the fully qualified DNS of the domain or domain controller. If this field is not specified, the current domain will be used.

User name

Enter the user name of an operator who has permission to retrieve account/group information and authenticate an account against this directory service, in the domainName\userName format.

Password

The password associated with the credentials specified in the User name field.
