Using a Database Connection as a Data Source
Data Platform
To use a database connection as a data source, do the following tasks:
|
1.
|
Click Create Process, located in the upper section of the Administration Console. The Process Type screen opens. |
|
2.
|
Click the Purchase Order radio button. |
|
3.
|
Click Next. The Purchase Order Source screen opens. |

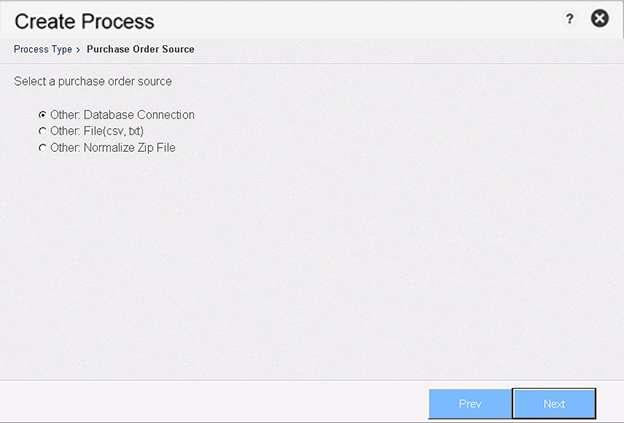

Purchase Order Source
|
4.
|
Click the radio button—Other: Database Connection. |
|
5.
|
Click the database connection radio button that is applicable to your situation. Options are determined by the database used by Data Platform Normalize. |
|
6.
|
Select a configuration file (or use a customized configuration file), for the discovery tool you are adding. (For more information about customizing configuration files, see Creating a Purchase Order Configuration File) |
|
7.
|
Enter configuration values for the discovery tool’s data source and location. |
Note:The specific fields that display on the screen will vary, depending on the database connection previously selected.
|
8.
|
Complete one of the following options: |
|
•
|
To configure Process Settings later: Click Finish to add the process to the Administration Console. |

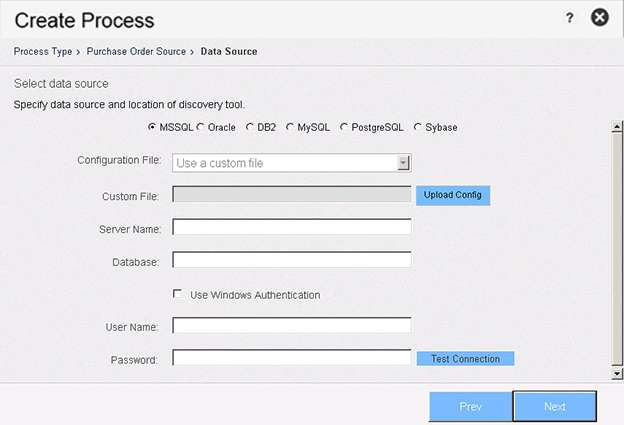

Specifying Purchase Order Data Source Values—MSSQL
When MSSQL is selected as the data source, the Create Process dialog box includes the following properties:
|
•
|
Server Name—Enter the name of the database server. |
|
•
|
Database—Enter the name of the database. |
|
•
|
Use Windows Authentication—Click the checkbox to enable Windows authentication. |
|
•
|
User Name—Enter the authentication domain/username that enables access to the database. |
|
•
|
Password—Enter the password that enables access to the database. |

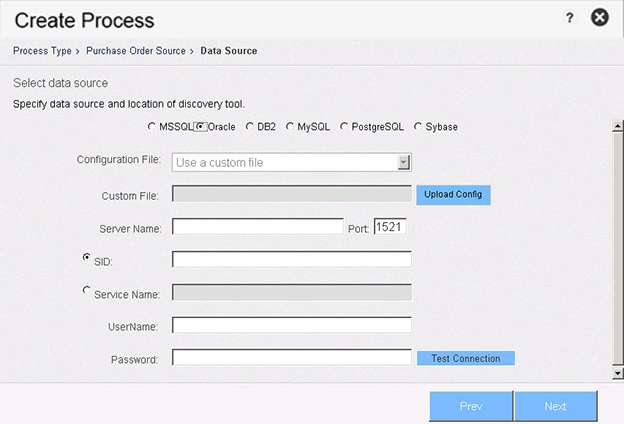

Specifying Purchase Order Data Source Values—Oracle
When Oracle is selected as the data source, the Create Process dialog box includes the following properties:
|
•
|
Server Name—Enter the name of the database server. |
|
•
|
Port—Enter the port used to connect to f the database. |
|
•
|
SID—Click this radio button to enable use of the System Identifier (SID) that identifies the database instance, and then enter the system identifier (database name + instance number; e.g. database3). |
|
•
|
Service Name—Click this radio button to enable use of a ‘connector’ to one or more instances of the database, and then enter the Service Name (e.g., sales.us.example.com). |
|
•
|
User Name—Enter the username that enables access to the database. |
|
•
|
Password—Enter the password that enables access to the database. |
Specifying Purchase Order Data Source Values—DB2
When DB2 is selected as the data source, the Create Process dialog box includes the following properties:
|
•
|
Server Name—Enter the name of the database server. |
|
•
|
Port—Enter the port used to connect to the database. |
|
•
|
Database—Enter the name of the database. |
|
•
|
UserName—Enter the username that enables access to the database. |
|
•
|
Password—Enter the password that enables access to the database. |
Specifying Purchase Order Data Source Values—MySQL
When MySQL is selected as the data source, the Create Process dialog box includes the following properties:
|
•
|
Server Name—Enter the name of the database server. |
|
•
|
Database—Enter the name of the database. |
|
•
|
UserName—Enter the username that enables access to the database. |
|
•
|
Password—Enter the password that enables access to the database. |

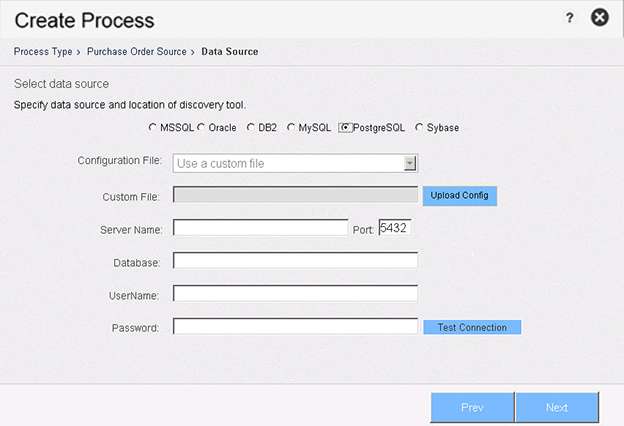

Specifying Purchase Order Data Source Values—PostgreSQL
When PostgresSQL is selected as the data source, the Create Process dialog box includes the following properties:
|
•
|
Custom File—Click Upload Config and select the custom file to be used for this process. (This option may be greyed-out and not available, depending on the database settings.) |
|
•
|
Server Name—Enter the name of the database server. |
|
•
|
Port—Enter the port used to connect to the database. |
|
•
|
Database—Enter the name of the database. |
|
•
|
User Name—Enter the username that enables access to the database. |
|
•
|
Password—Enter the password that enables access to the database. |
Specifying Purchase Order Data Source Values—Sybase
When Sybase is selected as the data source, the Create Process dialog box includes the following properties:
|
•
|
Server Name—Enter the name of the database server. |
|
•
|
Port—Enter the port used to connect to the database. |
|
•
|
Database—Enter the name of the database. |
|
•
|
UserName—Enter the username that enables access to the database. |
|
•
|
Password—Enter the password that enables access to the database. |
