Removing Normalize CM Custom Class Definitions from ConfigMgr

To remove Normalize CM custom class definitions from ConfigMgr:

1. Edit the *.mof file on the primary ConfigMgr Server, and remove all new class definitions by BDNA, by replacing the definition with a deleteClass declaration.

Default location:

%PROGRAM FILES%\Microsoft Configuration Manager\inboxes\clifiles.src\hinv\*.mof

Note:For ConfigMgr 2007 the filename is sms_def_mof. For ConfigMgr 2012 the filename is configuration.mof.

2. Remove BDNA software class definitions, by removing all lines between:

//**************************************************************************

//* BDNA Class: BDNA Software Data --- BEGIN

//**************************************************************************

and

//**************************************************************************

//* BDNA Class: BDNA Software Data ---- END

//**************************************************************************

3. Remove BDNA hardware class definition, by removing all lines between:

//**************************************************************************

//* BDNA Class: BDNA Hardware Data --- BEGIN

//**************************************************************************

and

//**************************************************************************

//* BDNA Class: BDNA Hardware Data ---- END

//**************************************************************************

4. Add the following definitions to the end of the file to remove the classes in WMI.

#pragma namespace (“\\\\.\\root\\CIMv2”)

#pragma deleteclass(“BDNA_Software_Data”,NOFAIL)

#pragma deleteclass(“BDNA_Hardware_Data”,NOFAIL)

#pragma namespace (“\\\\.\\root\\CIMv2\\sms”)

#pragma deleteclass(“BDNA_Software_Data”,NOFAIL)

#pragma deleteclass(“BDNA_Hardware_Data”,NOFAIL)

5. Wait 2-3 minutes for the ConfigMgr server to take action on the deleteClass declaration. It is then safe to remove the deleteClass definition itself.
6. To review the result of deleteClass, run wbemtest, connect to root\cimv2, and verify that BDNA_HARDWARE_DATA and BDNA_SOFTWARE_DATA are properly removed:
a. Start wbemtest from the Start menu, and click OK.

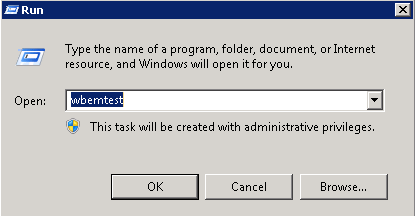

Running wbemtest

b. Click Connect.

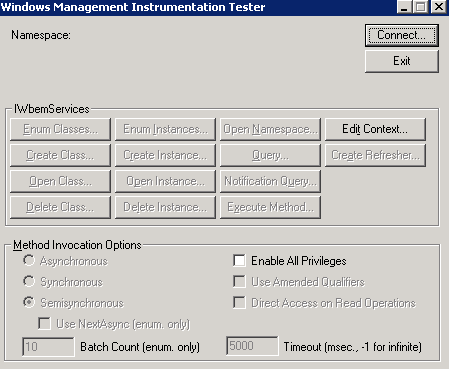

Connecting in wbemtest

c. Connect to the root\cimv2 space.

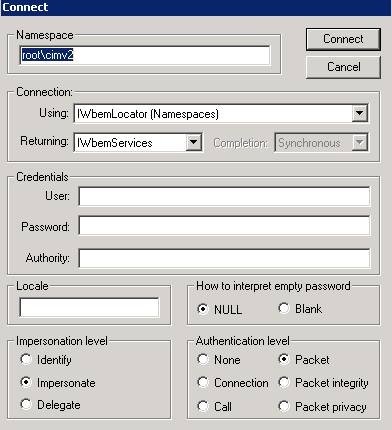

Connecting to the root\cimv2 Space

d. Click Enum Classes.

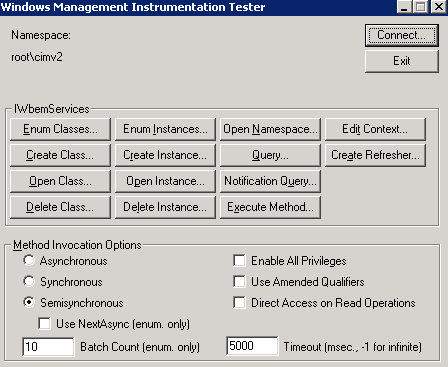

Choosing Enum Classes

e. Choose Recursive and click OK.

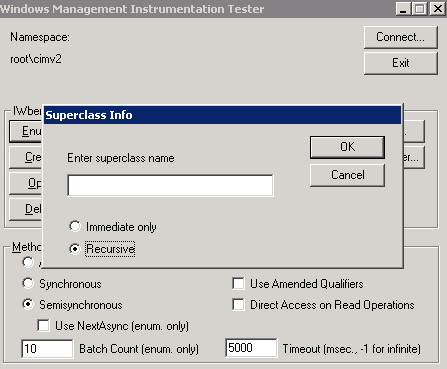

Choosing Recursive

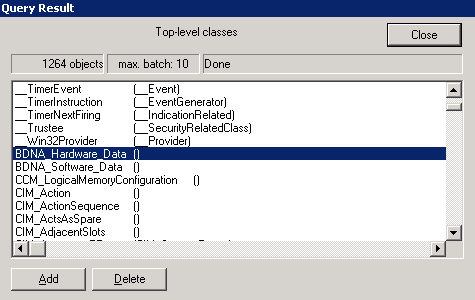

f. Browse through the object result to ensure that the BDNA_HARDWARE_DATA and BDNA_SOFTWARE_DATA objects do not exist. For example, if you see a screen such as the one below, it is result of an error.

Choosing Enum Classes
