Click Add Data Source, located on the BDNA Normalize panel of the Administration Console. The Select Data Source Type screen opens.
Add Data Source Type
2.
Click the Data Mashup radio button.
3.
Click Next. The Mashup Source screen opens.
4.
Click the Other: Database Connection radio button.

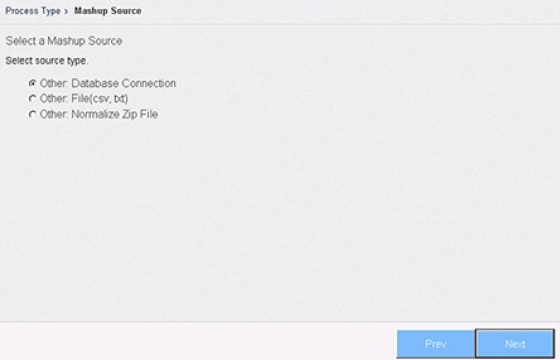

Mashup Source
5.
Click Next. The Select Data Source dialog opens.
6.
Click the database connection radio button that is applicable to your situation. Options are determined by the IT Discovery Tool process and type of database used by BDNA Normalize.
7.
Select a configuration file (or use a customized configuration file), for the discovery tool you are adding.
8.
Enter configuration values for the discovery tool’s data source and location.
Note • The specific fields that display on the screen will vary, depending on the database connection previously selected.
9.
Click Finish to add the data source to the process.
IT Discovery Tool Data Source—MSSQL
When MSSQL is selected as the data source, the Create Process dialog box includes the following properties:
•
Server Name—Enter the name of the database server.
•
Database—Enter the name of the database.
•
Use Windows Authentication—Click the checkbox to enable Windows authentication.
•
User Name—Enter the authentication domain/username that enables access to the database.
•
Password—Enter the password that enables access to the database.

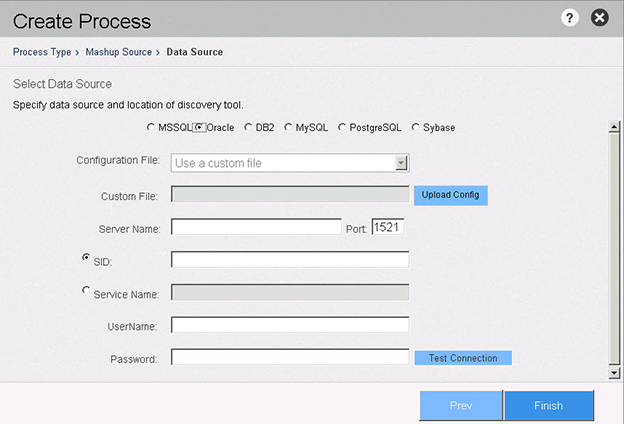

IT Discovery Tool Data Source—Oracle
When Oracle is selected as the data source, the Create Process dialog box includes the following properties:
•
Server Name—Enter the name of the database server.
•
Port—Enter the port used to connect to the database.
•
SID—Click this radio button to enable use of the System Identifier (SID) that identifies the database instance, and then enter system identifier (database name + instance number; e.g. database3).
•
Service Name—Click this radio button to enable use of a ‘connector’ to one or more instances of the database, and then enter the Service Name (e.g., sales.us.example.com).
•
User Name—Enter the username that enables access to the database.
•
Password—Enter the password that enables access to the database.

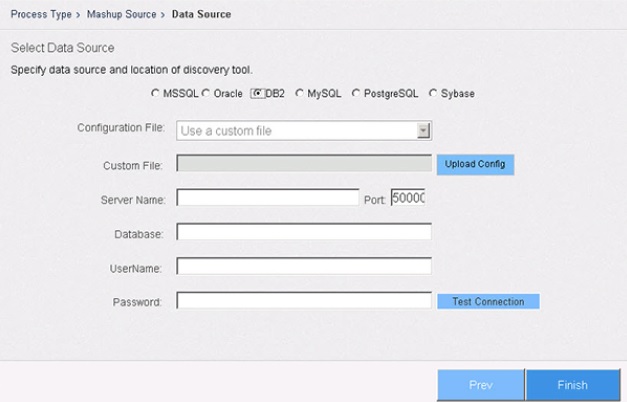

IT Discovery Tool Data Source—DB2
When DB2 is selected as the data source, the Create Process dialog box includes the following properties:
•
Server Name—Enter the name of the database server.
•
Port—Enter the port used to connect to the database.
•
Database—Enter the name of the database.
•
User Name—Enter the username that enables access to the database.
•
Password—Enter the password that enables access to the database.
IT Discovery Tool Data Source—MySQL
When MSSQL is selected as the data source, the Create Process dialog box includes the following properties:
•
Server Name—Enter the name of the database server.
•
Database—Enter the name of the database.
•
User Name—Enter the username that enables access to the database.
•
Password—Enter the password that enables access to the database.

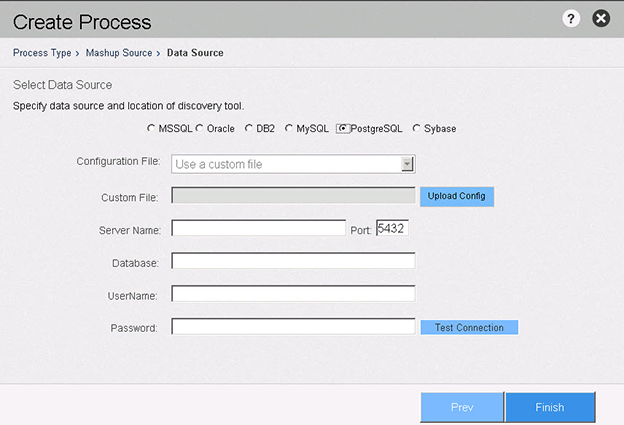

IT Discovery Tool Data Source—PostgreSQL
When PostgreSQL is selected as the data source, the Create Process dialog box includes the following properties:
•
Custom File—Click Upload Config and select the custom file to be used for this process. (This option may be greyed-out and not available, depending on the database settings.)
•
Server Name—Enter the name of the database server.
•
Port—Enter the port used to connect to the database.
•
Database—Enter the name of the database.
•
User Name—Enter the username that enables access to the database.
•
Password—Enter the password that enables access to the database.

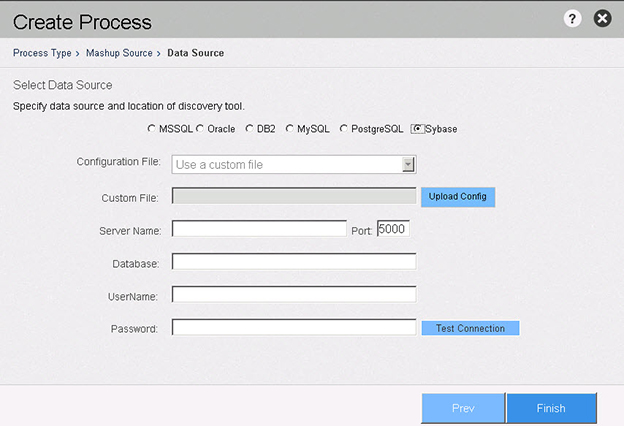

IT Discovery Tool Data Source—Sybase
When Sybase is selected as the data source, the Create Process dialog box includes the following properties:
•
Server Name—Enter the name of the database server.
•
Port—Enter the port used to connect to the database.
•
Database—Enter the name of the database.
•
User Name—Enter the username that enables access to the database.
•
Password—Enter the password that enables access to the database.
