Click Create Process, located in the upper-right section of the Administration Console. Click the IT Discovery Tool radio button.
2.
Click Next.
3.

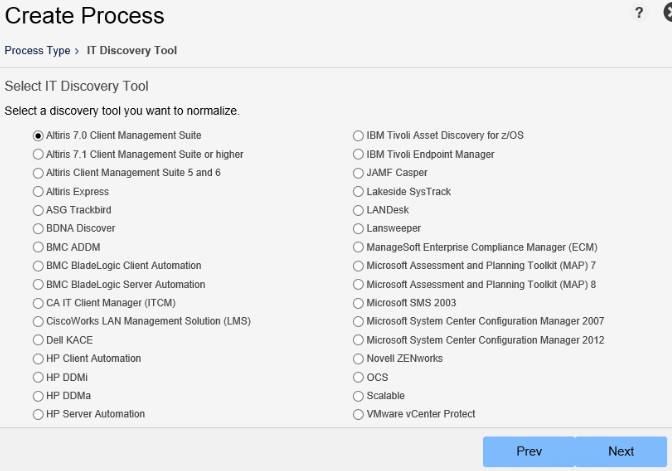

Select the IT Discovery tool that you want to normalize. The discovery tools are listed in alphabetical order and may require scrolling the window to see the entire list.
Note • BDNA highly recommends that the database user account used to extract data from a data source is a read-only account.
To configure the Process Settings later: Click Finish to add the process to the Administration Console. You can complete the additional process settings at a later time.

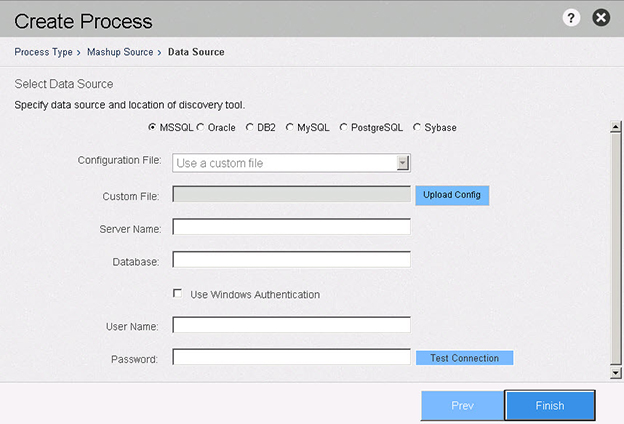

IT Discovery Tool Data Source—MSSQL
•
Server Name—Enter the name of the database server.
•
Database—Enter the name of the database.
•
Use Windows Authentication—Click the checkbox to enable Windows authentication.
•
User Name—Enter the authentication domain/username that enables access to the database.
•
Password—Enter the password that enables access to the database.
IT Discovery Tool Data Source—Oracle
•
Server Name—Enter the name of the database server.
•
Port—Enter the port used to connect to the database.
•
SID—Click this radio button to enable use of the System Identifier (SID) that identifies the database instance, and then enter the system identifier (database name + instance number; e.g. database3).
•
Service Name—Click this radio button to enable use of a ‘connector’ to one or more instances of the database, and then enter the Service Name (e.g., sales.us.example.com).
•
User Name—Enter the username that enables access to the database.
•
Password—Enter the password that enables access to the database.

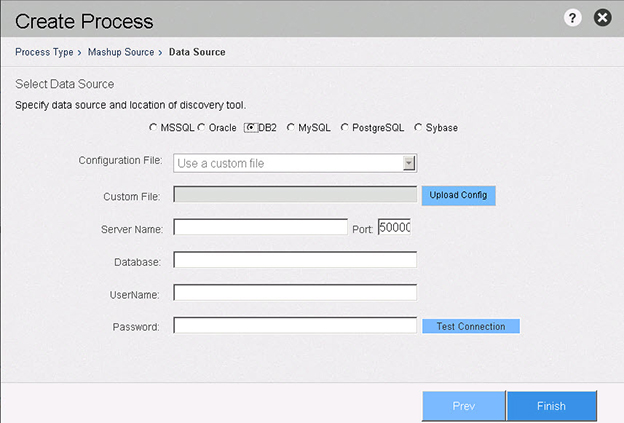

IT Discovery Tool Data Source—DB2
•
Server Name—Enter the name of the database server.
•
Port—Enter the port used to connect to the database.
•
Database—Enter the name of the database.
•
User Name—Enter the username that enables access to the database.
•
Password—Enter the password that enables access to the database.
