Architecture and Recommended Deployment

The following figure shows how the FlexNet Manager for Engineering Applications components interact with one another. Flexera recommends that you use physically separate server machines—one for each of the FlexNet Manager for Engineering Applications core components (Admin and Reporting), as shown in {Hyperlink}Figure {Default ¹ Font}.

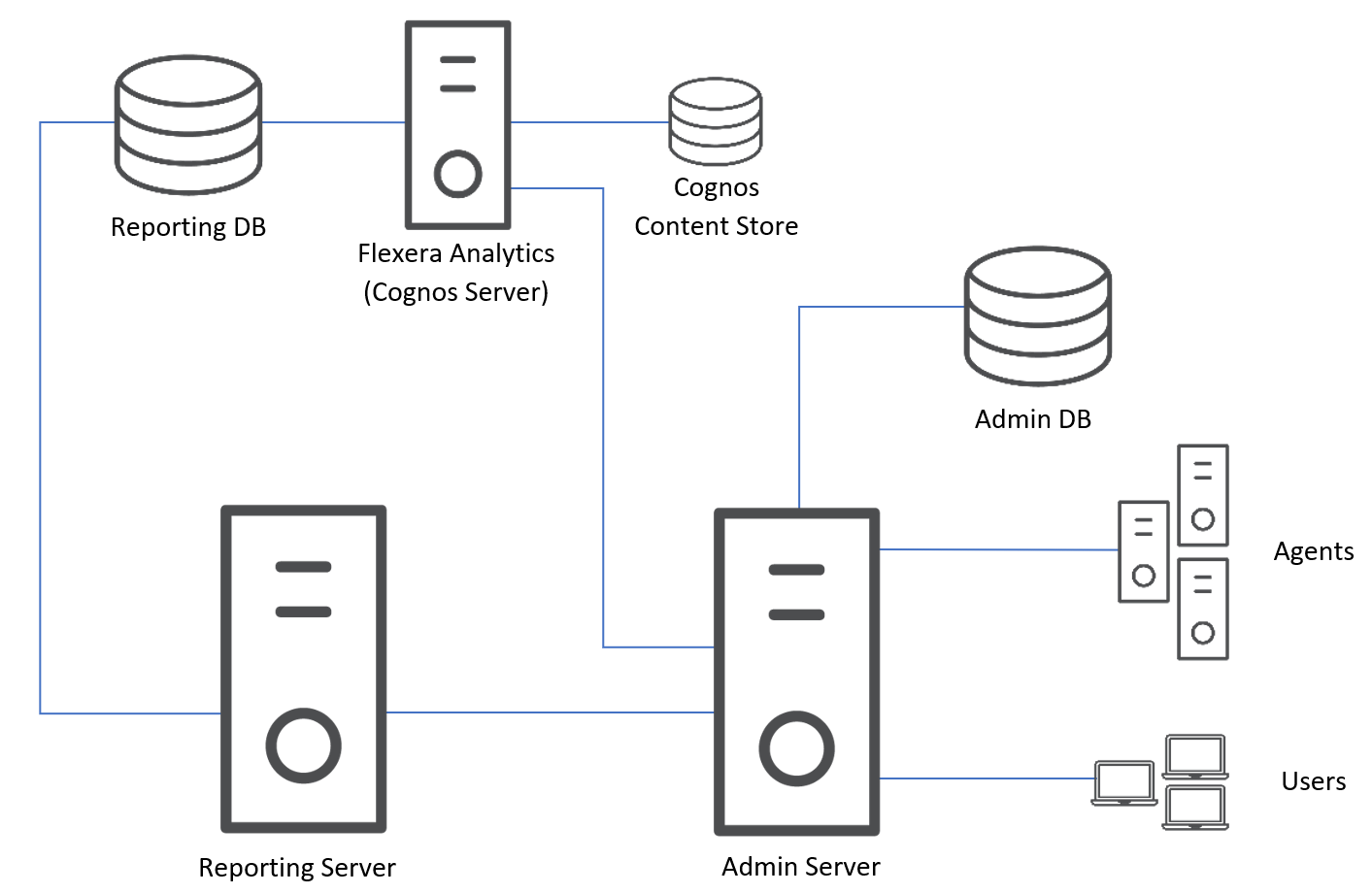

Recommended deployment design, using separate server machines for FlexNet Manager for Engineering Applications Reporting and Admin.
