Running the Feature Usage Statistics Reports

The Feature Usage Statistics reports are available in the FlexNet Manager for Engineering Applications Reports folder, available from the Cognos Reporting page of the FlexNet Manager for Engineering Applications user interface.

The initial interface for the Feature Usage Statistics reports is the Feature Peak Usage Summary report. From this report, you can click links to the drill-through reports, which provide more granular data.

To run the Feature Usage Statistics reports:

1. To ensure that data are available, complete the Prerequisites for Running Usage Statistics Reports (page {Hyperlink}1{Default ยน Font}).
2. From the Reporting tab, under Flexera Analytics, click Cognos Reporting.
3. In the Cognos Connection pane, in the Public Folders tab, click the FlexNet Manager Suite link to open the package containing the report folders.
4. Click the FlexNet Manager for Engineering Applications Reports link, then click the Usage Statistics Reports link.
5. Click one the Feature Usage Statistics link to display the Feature Peak Usage Summary prompt page.
6. In the prompt page, specify the information that you want to see in the report. You can search for items in any of the lists using the search boxes above the lists.

Prompt

Description

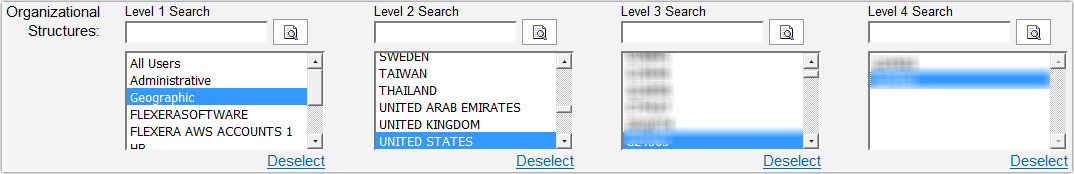

Organizational Structures

Select, by organizational-structure level, the group of users for whom you want to view usage data. When you select an item in the Level 1 Search list, (other than All Users), a Level 2 Search list is displayed, containing the members of the Level 1 selection. This is repeated down to Level 4.

Note:For Usage Statistics reports, data is available only for user-based organizational structures.

Software Producers

Select the software producers for whom you want to see usage data, then click the right-arrow to move them to the right selection box. Press the Ctrl key while selecting items to select multiple items at one time.

This selection filters the items that are available in the Vendor Daemons prompt.

Vendor Daemons

Select the vendor daemons whose features you want to see, then click the right-arrow to move them to the right selection box. Press the Ctrl key while selecting items to select multiple items at one time.

This selection filters the items that are available in the Features prompt.

Features

Select the features for which you want to see usage data, then click the right-arrow to move them to the right selection box. Press the Ctrl key while selecting items to select multiple items at one time.
7. Click Run report.
