Workflow Manager 2017
Release Notes
2017 Updates 1 & 2 (Released 3 September 2018)
2017 (Released 21 November 2017)
Introduction
Workflow Manager helps enterprises efficiently manage the Application Readiness and Software License Optimization processes to streamline the procurement, preparation, deployment, and ongoing management of applications. Workflow Manager maximizes productivity of the IT team by automating change management, asset management, and other ITIL processes as part of the enterprise application lifecycle.
When IT-wide processes such as preparing application for deployment, migrations, and license optimization are managed poorly, expensive errors can occur, resulting in costly delays, lost productivity, and overspending. Workflow Manager standardizes, coordinates, and streamlines the management of applications through the entire enterprise lifecycle, reducing costs and maximizing productivity.
Workflow Manager supports both AdminStudio Suite and FlexNet Manager Suite for Enterprises. IT teams of every size use Workflow Manager to coordinate software asset management—from application packaging and deployment, though software licensing and optimization after deployment. Workflow Manager can manage desktop management processes, such as preparing for Windows migrations and application virtualization, as well as procurement, auditing, and retirement of software assets.
New Features Update 2
Workflow Manager 2017 Update 2 includes the following new features:
• | Specify Time Off on the Time Off Administration Page |
• | Edit Custom Tables to Allow Record Changes |
• | View Detailed List of Workflow Requests |
Specify Time Off on the Time Off Administration Page
In WorkFlow Manager 2017 Update 2, you can specify the beginning and end date for your time off requests on the Time Off Administration page.

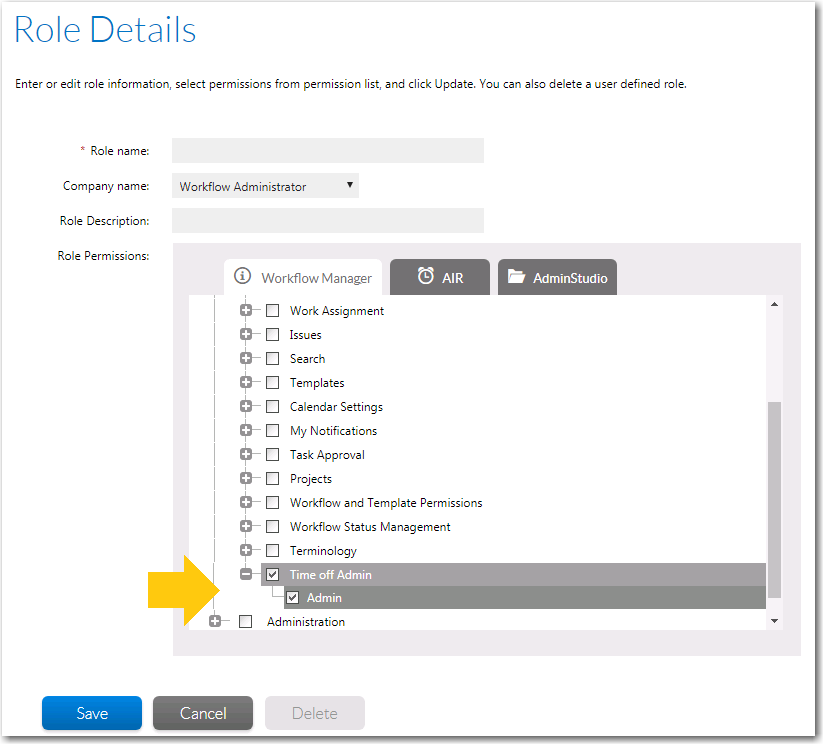

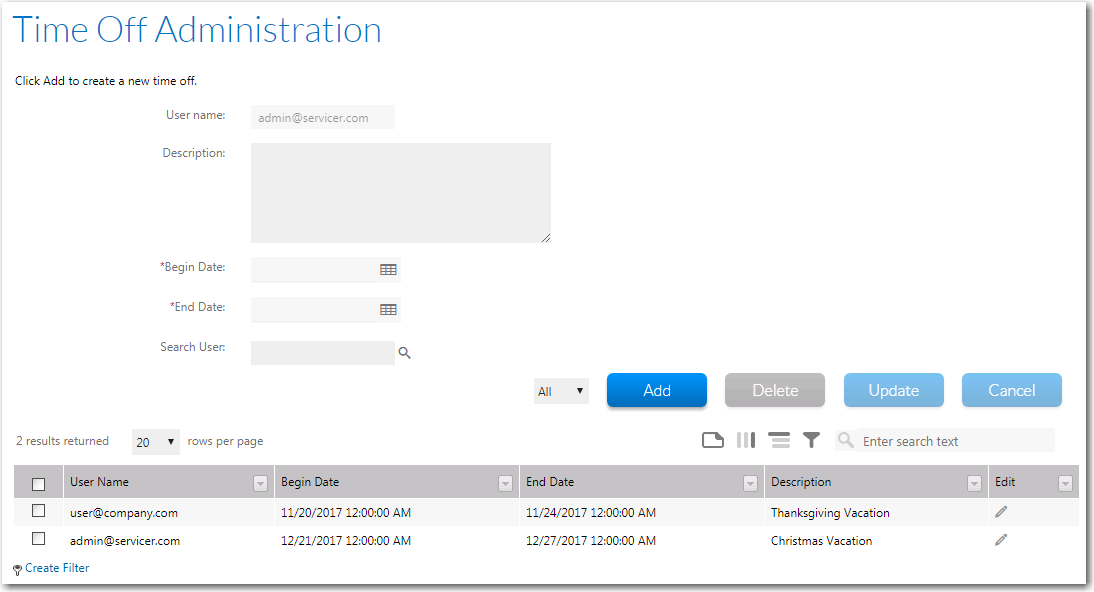

Time Off Administration Page
Edit Custom Tables to Allow Record Changes
In WorkFlow Manager 2017 Update 2, Workflow Administrators will be able to change records in any table in Workflow Manager.
The Custom Table Editor in the Workflow Manager provides a way to edit custom tables that may be created to work with the iPlugin DLL or custom web pages.

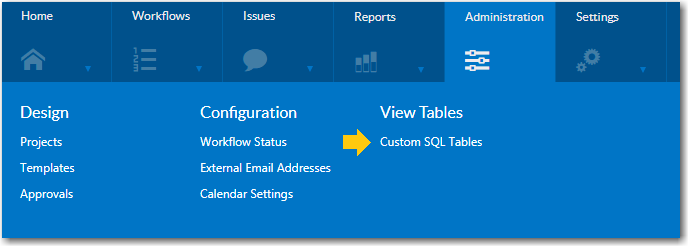

Custom Table Editor Menu Item on Administration Menu
View Detailed List of Workflow Requests
In Workflow Manager 2017 Update 2, you can click on the workflow requests that are Open, Late, At Risk, or On Time to view the detailed list of requests.

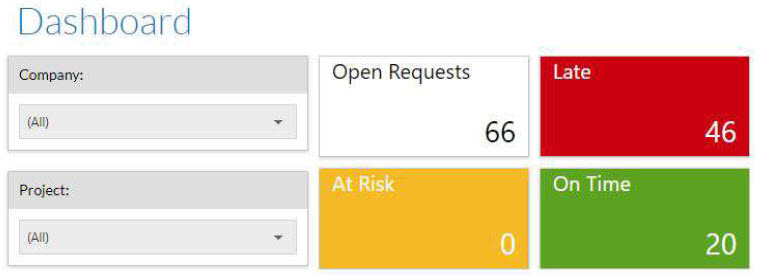

Workflow Request Status on Dashboard
You can also click on the open issues to either Respond or Close Issue.

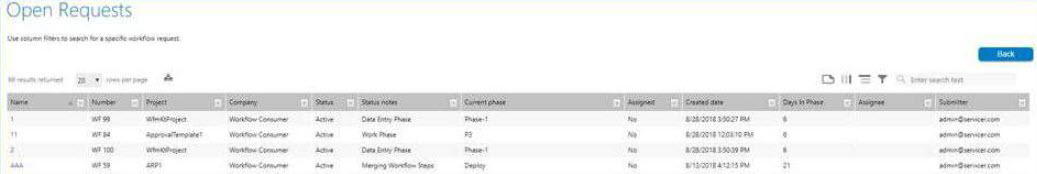

Open Requests Page
New Features Update 1
Workflow Manager 2017 Update 1 includes the following new features:
• | Support to Import Transforms with MSI Package |
• | Distribute the Same Package to Different SCCM Environments |
• | Allow Users to Delete a Workflow or Set the Status |
Support to Import Transforms with MSI Package
In Workflow Manager 2017 Update 2, when you import an MSI package from AdminStudio to Workflow Manager, the .msp or/and .mst patch files can be selected in order to be applied with the MSI package.
Selecting Patches During Import
Distribute the Same Package to Different SCCM Environments
In Workflow Manager 2017 Update 2, you can publish a package from AdminStudio to multiple SCCM environments.

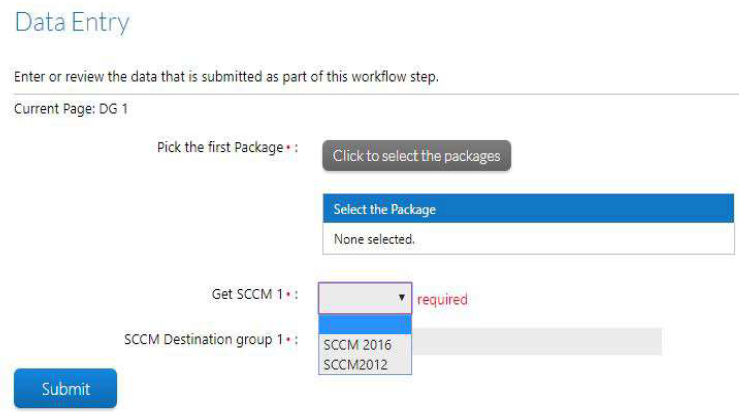

Selecting the SCCM Environment

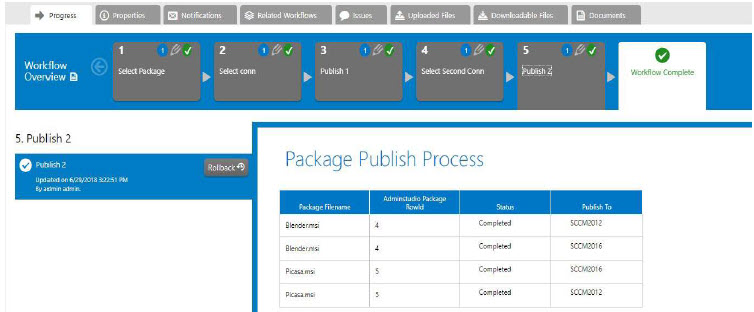

Publishing to Multiple SCCM Environments
Allow Users to Delete a Workflow or Set the Status
In Workflow Manager 2017 Update 2, users can assign the workflow status either an Active or Inactive state. The user can also delete the workflow.

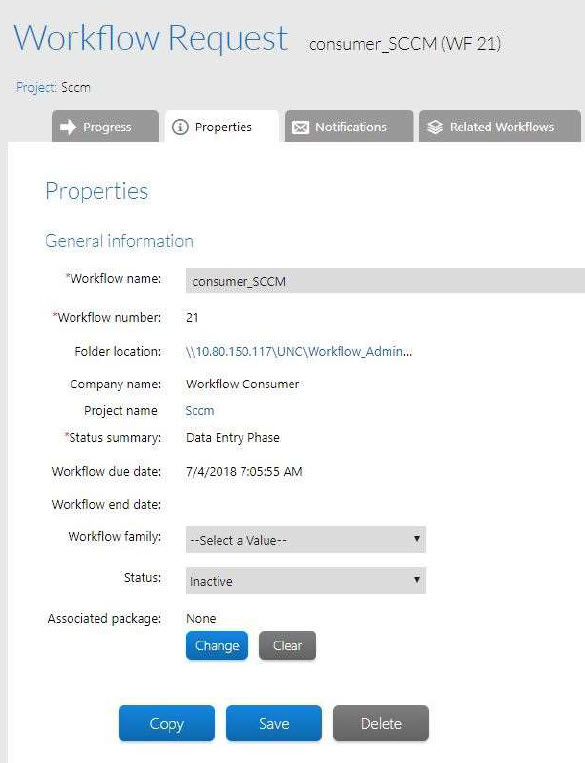

Assigning Workflow Status on the Properties Tab of Workflow Request Page
New Features Workflow Manager 2017
Workflow Manager 2017 includes the following new features:
• | AdminStudio Application Catalog and Package Reports Now Visible to Users in Consumer Companies |
• | Work Assignment Screens Now Only Display Roles Relevant to the Current Workflow Step |
• | New Menu Item to Copy an Existing Workflow Request |
• | Ability to Add Configurable Menu Items to the Workflow Manager Navigation Bar |
• | Ability to Add Configurable Menu Items to the Workflow Progress Options Menu |
• | Now Able to Specify Internal Name for Data Elements for Use in Custom Reporting |
• | New Data Element Data Type, Contact, to Enable Predictive Search for Contacts on Data Entry Screens |
• | New Time Off Functionality Enables Scheduled Time Off to Be Displayed on Work Assignment Screens |

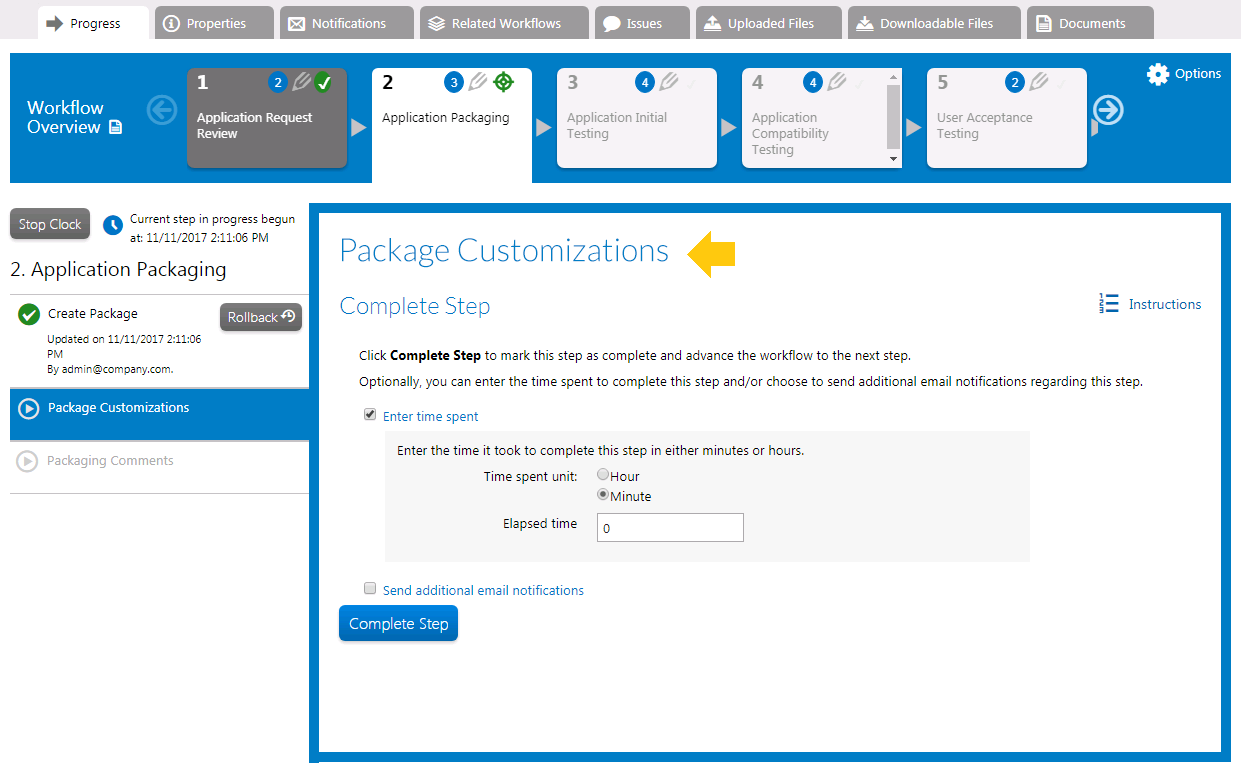

• | Workflow Step Name is Now Displayed in the Workflow Step Panel |
• | Data Group Name Now Displayed on Data Entry Screens |
• | ValidateDataGroup and ValidateRequest Events Were Added to the iPlugin Interface |
AdminStudio Application Catalog and Package Reports Now Visible to Users in Consumer Companies
Note • This feature was tracked in issues IOJ-1758828 and IOJ-1813902.
In Workflow Manager 2017 Update 1, users from Consumer companies can now view AdminStudio Application Catalog and Package reports. Previously, these reports could only be viewed by users in Administrator companies.
Application Catalog Reports Menu Item
Application Catalog Reports Now Visible to Users in Consumer Companies
In previous releases, users in Administrator companies could view the standard Application Catalog reports and any custom RDLC reports that had been added by selecting the Application Catalog Reports menu item under AdminStudio Reports on the Reports tab. The Application Catalog Reports menu item was not displayed for users in Consumer companies.
In Workflow Manager 2017, users in Consumer companies can now also view the Application Catalog Reports menu item, enabling them to view the following reports:
• | Standard Application Catalog reports, a wide array of reports containing summary information on packages in the AdminStudio Application Catalog and the results of compatibility and best practices testing. These reports give you insight into the readiness of those packages for distribution and for conversion to virtual packages. |
• | All custom RDLC reports that have been added, as described in Creating Custom Reports in the AdminStudio Help Library. |
Package Reports Now Visible to Users in Consumer Companies
In previous releases, users in Administrator companies could view Package reports by selecting the Search Packages menu item under AdminStudio Reports on the Reports tab. The Search Packages menu item was not displayed for users in Consumer companies.
In Workflow Manager 2017, users in Consumer companies can now also view the Search Packages menu item, enabling them to view Package reports, which list detailed package information for packages that have been imported into the AdminStudio Application Catalog.
Work Assignment Screens Now Only Display Roles Relevant to the Current Workflow Step
Note • This feature was tracked in issue IOJ-1759712.
In previous releases, when assigning work as part of a workflow step (for workflow steps with a step type of Work Assignment), all roles were listed in the workflow step details area, making it difficult to easily see which roles apply to the current workflow step.
In Workflow Manager 2017, only those roles you specify when defining the workflow step will be listed in the workflow step details area.
When you create a workflow step with a step type of Work Assignment, there is a new field named Please Select a Role where you can select only the roles relevant to that workflow step.

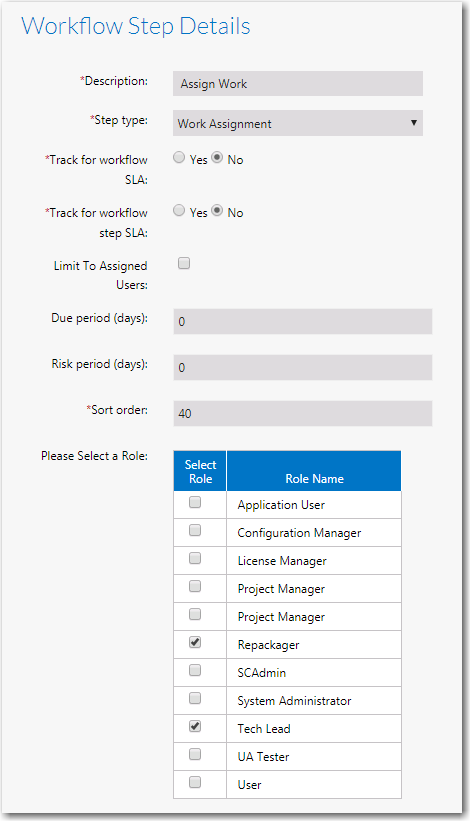

Selecting Roles for a Work Assignment Workflow Step
When that workflow step is displayed in a workflow request, only the roles that you specified will be listed.
Selected Roles Listed for a Work Assignment Workflow Step
New Menu Item to Copy an Existing Workflow Request
Note • This feature was tracked in issue IOJ-1760484.
In previous releases, if you wanted to copy an existing workflow request, you had to open the Properties tab of an existing workflow request’s Workflow Request page and then click the Copy button.
In Workflow Manager 2017, a new menu item entitled Copy an Existing Workflow Request has been added to the Workflows tab, making it much easier to quickly copy an existing request.

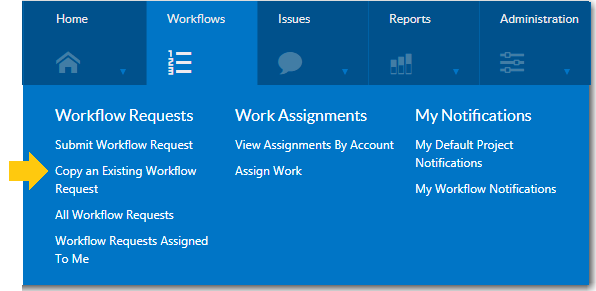

Copy an Existing Workflow Request
When you select Copy an Existing Workflow Request, a new view entitled Copy Workflow Request opens.
Copy Workflow Request View
To copy an existing request, click Copy in the Action column next to the name of the workflow request that you want to copy. You will then be prompted to enter a name for the new workflow request.
Ability to Add Configurable Menu Items to the Workflow Manager Navigation Bar
Note • This feature was tracked in issues IOJ-1823608 and IOJ-1829610.
In previous releases, you were unable to add any new menu items to the tabs in the Workflow Manager navigation bar, such as to the Administration tab below.
Workflow Manager Administration Tab
In Workflow Manager 2017, you can now add new menu items by editing the NavExtension.xml file and specifying the following information:
• | Name of the top-level tab, such as Administration. |
• | Name of the heading of the menu group, such as View Tables. |
• | Name of the menu item, such as Custom SQL Tables. |
• | A URL link for the menu item. |
To add a custom menu item to the main Workflow Manager navigation bar, perform the following steps.
To add a custom menu item to the Workflow Manager navigation bar:
1. | On the server where Workflow Manager is installed, locate and open the following file in a text editor (running it as an Administrator): |
C:\AdminStudioWebComponents_2017\wwwroot\NavExtension\NavBar_Extensions.xml
By default, the code in this file is “commented out” so that it is not applied to Workflow Manager.
2. | Remove the <!-- characters at the very beginning of the XML file, and the --> characters at the very end of the file and save the file. |
After you save this file and open Workflow Manager in a new browser window, you will notice that several new workflow items are added to the Administration tab: Test Menu and Test Menu two.
3. | Locate the <Name> element under <Main>. By default, <Name> is set to Administration. |
<WFM.Nav>
<Main>
<Id>8</Id>
<Name>Administration</Name>
4. | Set the <Name> element to the name of the main tab that you want to add a menu item to: Home, Workflows, Issues, Reports, Administration, or Settings. |
5. | Under the <Name> element, locate the <SubItem> element. By default. this element is set to Test Menu. |
<SubItem>
<Name>Test Menu</Name>
6. | Change the value of the <SubItem> element to the name of the new menu heading that you want to add, such as View Tables. |
7. | Under that <SubItem> element, locate the first <ItemList> element. |
<ItemList>
<Name>Link 1</Name>
<ResourceString></ResourceString>
<PermissionValue Activation="IsWFMActivated">
<Value></Value>
</PermissionValue>
<class>nav-item</class>
<action>ActionLink1</action>
<controll>Test</controll>
<Actiondata>
<data>
<key>id</key>
<value>1</value>
</data>
</Actiondata>
</ItemList>
8. | Change the value of the <Name> element to the name of the menu item you want to add, such as Custom SQL Tables. |
9. | Specify the relative URL of the page that you want to open when this menu item is clicked by setting values for the following elements: |
<action>ActionLink1</action>
<controll>Test</controll>
<Actiondata>
<data>
<key>id</key>
<value>1</value>
</data>
<Actiondata>
For example, if the menu item is configured with the above values, the URL that would be opened when the menu item was selected would be the following:
http://localhost:81/Test/ActionLink1/1
10. | To add another item to the menu list, duplicate and edit the entire <ItemList> element. |
11. | Save the NavBar_Extensions.xml file, and then open Workflow Manager in a new browser window. The new menu item will now be listed in the menu. |
12. | To add custom menu items to second main tab of the navigation menu, make a copy of the entire <Main> element in the NavBar_Extensions.xml file, change the <Name> element to another one of the main menu tabs (such as Reports) and then specify the <SubItem> and <ItemList> elements as described above. |
Ability to Add Configurable Menu Items to the Workflow Progress Options Menu
Note • This feature was tracked in issue IOJ-1823616.
In Workflow Manager 2017, you can now add custom menu items to the Options menu on the Progress tab of the Workflow Request page.

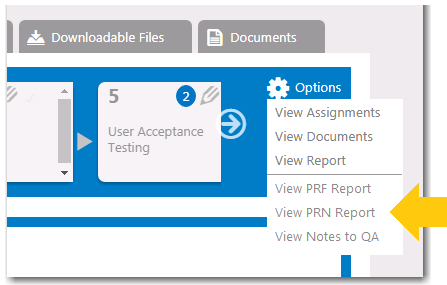

Custom Items on Options Menu of Progress Tab of Workflow Request View
To create custom menu items on the Options menu, you can add records to the AMS_CustomWorkFlowLink table in the database. The menu items can link to general URLs (using the LinkUrl field) or they can link to MVC controllers and actions in Workflow Manager (using the ActionName and ControllName fields).
• | Record Fields in AMS_CustomWorkflowLink Table |
• | Using the LinkUrl Field to Specify Menu Item URLs |
• | Using the ControllName and ActionName Fields to Specify Menu Item URLs |
Record Fields in AMS_CustomWorkflowLink Table
The following table lists the fields in the AMS_CustomWorkFlowLink table that need to added for each record.
Field |
Description |
||||||
linkId |
A unique identifier (GUID) that uniquely identifies the record in the table. |
||||||
CompanyID |
A foreign key from the AMS_Company table. Workflow Manager only shows menu items associated with the current user's company. |
||||||
LinkText |
The text that Workflow Manager will show on the Options menu. |
||||||
LinkUrl |
The URL to which Workflow Manager will navigate. This URL can be either of the following:
Note • Leave this field blank if you are using the ActionName and ControllName fields. |
||||||
LinkTarget |
The value for the target attribute on the link. Valid values include: _blank _self _parent _top |
||||||
LinkParameter |
Unused |
||||||
ActionName |
The MVC action name. Note • Leave this field blank if you are using the LinkUrl field. |
||||||
ControllName |
The MVC controller name. Note • Leave this field blank if you are using the LinkUrl field. |
The following table shows example records.
linkId |
CompanyID |
LinkText |
LinkUrl |
Link Target |
Link Parameter |
Action Name |
Controll |
23383ff4-8d9f-48ac-b57e-8cfeff5640b9 |
879373fe-2322-43d1-8596-789aded5d6bb |
Notes to QA |
/ASReports/ApplicationReports |
_blank |
NULL |
NULL |
NULL |
625deb46-fa7e-429b-8378-bdf821a3f99a |
879373fe-2322-43d1-8596-789aded5d6bb |
Hardware Tracking |
/CustomWorkflow/HardwareTracking.aspx |
_blank |
NULL |
NULL |
NULL |
879373fe-2322-43d1-8596-789aded5d6bc |
879373fe-2322-43d1-8596-789aded5d6bb |
Copy this Request |
_self |
copy |
WFProgress |
Using the LinkUrl Field to Specify Menu Item URLs
When using the LinkUrl field, Workflow Manager adds several arguments to the URL. The following table describes the arguments.
Argument Name |
Value |
A |
The ApplicationID for the current request, represented as a string GUID, such as: ee278931-b80c-4c48-a6bf-ad39411dc9e1 |
cid |
The ProjectID (a.k.a. the ContractID) for the current request, represented as a string GUID, such as: 06d14575-fb0c-40e4-9d94-1a0129e08692 |
pid |
The PersonID for the currently logged-in user, represented as a string GUID, such as: ed7aa499-4b72-4617-934b-76ce8ae69b53 |
The resulting URL will be similar to this one:
http://MyServer:81/CustomWorkflow/HardwareTracking.aspx?A=ee278931-b80c-4c48-a6bf-ad39411dc9e1&cid06d14575-fb0c-40e4-9d94-1a0129e08692&pided7aa499-4b72-4617-934b-76ce8ae69b53
Using the ControllName and ActionName Fields to Specify Menu Item URLs
When using the ControllName and ActionName fields, Workflow Manager appends a different set of arguments to the final URL, as show in the
Argument Name |
Value |
a |
The ApplicationID for the current request, represented as a string GUID, such as: ee278931-b80c-4c48-a6bf-ad39411dc9e1 |
cid |
The ProjectID (such as the ContractID) for the current request, represented as a string GUID, such as: 06d14575-fb0c-40e4-9d94-1a0129e08692 |
pid |
The PersonID for the currently logged-in user, represented as a string GUID, such as: ed7aa499-4b72-4617-934b-76ce8ae69b53 |
The resulting MVC URL will be similar to this one:
http://MyServer:81/WFProgress/copy?a=ee278931-b80c-4c48-a6bf-ad39411dc9e1&cid=06d14575-fb0c-40e4-9d94-1a0129e08692&pid=ed7aa499-4b72-4617-934b-76ce8ae69b53
Now Able to Specify Internal Name for Data Elements for Use in Custom Reporting
In previous releases, if you created a custom report that displays data elements, the only way to refer to a specific data element was to use its name or its GUID (DataMinorItemID).
• | If you used the name, then the report would break if someone changed the name in the template. |
• | If you used the GUID, then the report would break if you made a copy of the template and ran the report on a workflow linked to the new template. |
In Workflow Manager 2017, in order to be able to create reports that continue to work—even after creating a new template or changing the name of the data element, a new field was added to the Data Element Details view, named Internal Name. In this field, you can enter a human readable, stable name that can be used by custom reports to refer to data elements.
New Internal Name Field
The value entered into the Internal Name field is stored in a new column, DataMinorItemInternalDesc, of the AMS_DataMinorItemTpl table.
New Data Element Data Type, Contact, to Enable Predictive Search for Contacts on Data Entry Screens
Note • This feature was tracked as issue IOJ-1829463.
When entering data for a workflow request, you are frequently prompted to specify one or more contacts that are related to the workflow request. These contacts will not participate in the workflow process, so it is not appropriate to assign them to roles.
To address this need, in Workflow Manager 2017, you can add contacts to workflow requests as data elements, using a new data element data type of Contact. This enables you to store the contact's name, user name, e-mail address, and phone numbers in data element values.
New “Contact” Data Type
When you add a data element with the data type of Contact, the following fields are displayed in the data entry screen of the workflow request, prompting the requester to add contact information.

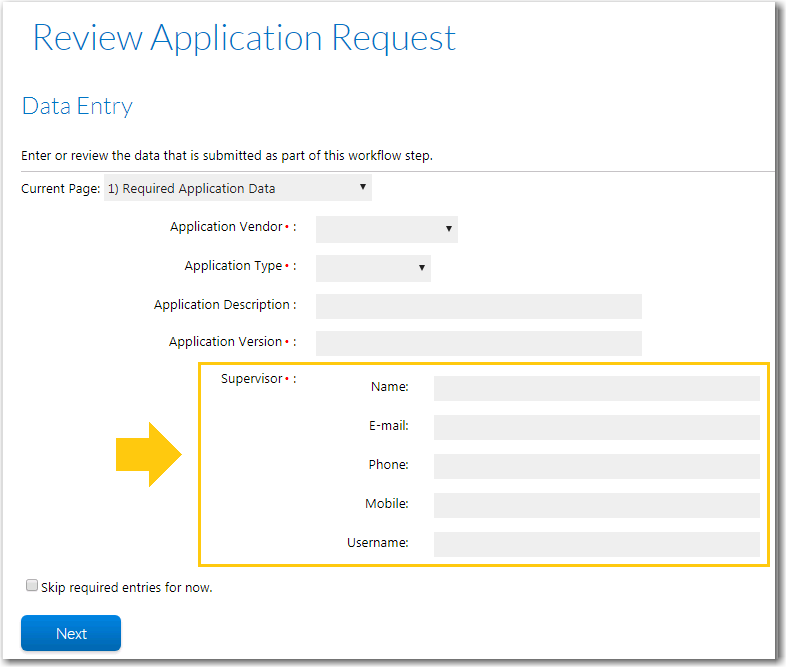

Contact Data Element / No Directory Services Connection
For a data element with a data type of Contact, Workflow Manager displays contact data fields (Name, E-mail, Phone, Mobile, and Username) as normal text fields, allowing users to edit their values.
After you have submitted contact information in one or more workflow requests, the next time you submit a workflow request and enter a character in one of the “contact” fields (one based on a data element with the data type of Contact), a menu will appear prompting you to select previously-entered contact information that matches the text that you have entered.

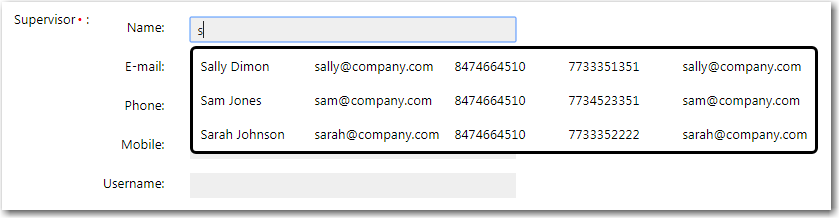

Predictive Search Menu
New Time Off Functionality Enables Scheduled Time Off to Be Displayed on Work Assignment Screens
Note • This feature was tracked in issues IOJ-1829619, IOJ-1829620, and IOJ-1829622.

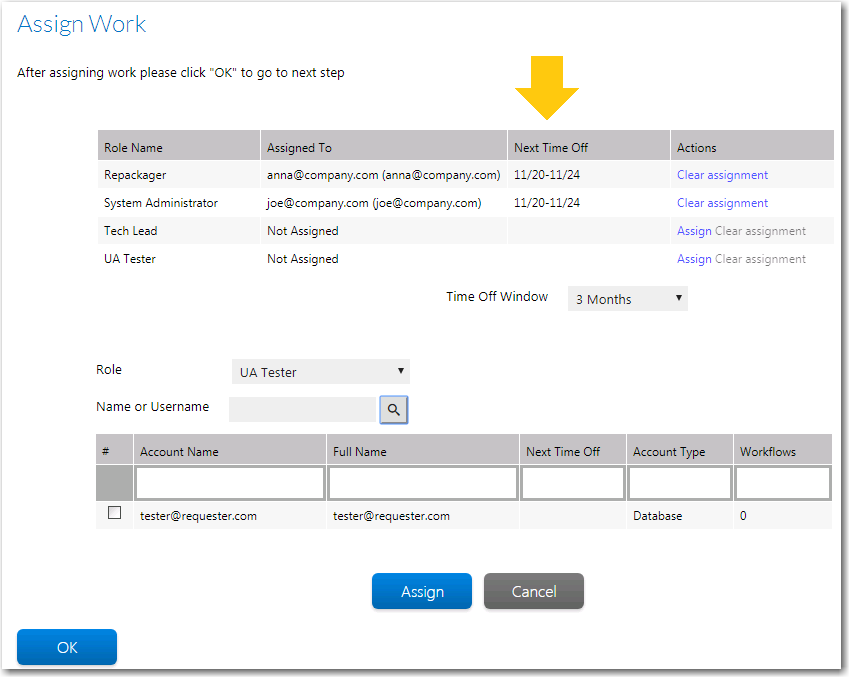

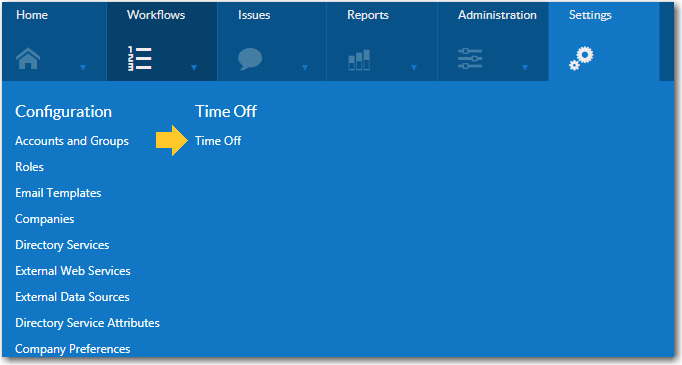

Workflow Manager 2017 has a new time off feature that enables scheduled time off for users to be displayed on work assignment screens that are part of a workflow step. This enables managers to assign resources accordingly.
Entering Time Off
In Workflow Manager 2017, users can enter time off records on the Time Off Administration page. To enter time off, select Time Off on the Settings menu.
New Time Off Menu Item
Users enter time off records on the new Time Off Administration page.
Time Off Administration Page
All users can create and view their own time off records. However, to see time off records for all users who are members of the administrator company or one of its associated consumer companies, the user must belong to a role that has the Time Off Admin role permission. For more information, see New Time Off Role Permission.
• | Users without Time Off Admin role permission can only submit a time off record for themselves. The logged in user’s name appears in the User name field and is not editable. |
• | Users with Time Off Admin role permission can also submit time off records for other users, by searching for and selecting a user in using the Search User field. |
Displaying Future Time Off on Work Assignment Screens
When completing a Work Assignment workflow step, after a user is assigned to a role, that user’s scheduled time off for the selected Time Off Window is displayed in the in the Next Time Off column.
If, after assigning a user to a role, the manager sees that the selected user has upcoming time off scheduled, the manager can choose to assign another user to the role who is available.
You can adjust the time period by making a selection from the Time Off Window menu.
Note • You can also view a user’s scheduled time off in the Next Time Off column in the search grid when searching for a user to assign to a role.
All users can create and view their own time off records. However, a new role permission has been added to Workflow Manager to give a user permission to see time off records for all users who are members of the administrator company or one of its associated consumer companies. The new role permission is named Admin under Time Off Admin, and can be assigned to a role on the Workflow Manager tab of the Role Details page.
Time Off Role Permission on Role Details Page
Workflow Step Name is Now Displayed in the Workflow Step Panel
Note • This feature was tracked as issue IOJ-1829634.
In previous releases, the name of the selected workflow step on the Progress tab of the Workflow Request page was only displayed in the workflow step area on the left side of the screen, making it difficult to know which workflow step was selected.
In Workflow Manager 2017, the workflow step name is now displayed in the workflow step details area (where workflow steps are completed).
Workflow Step Name Displayed in Workflow Step Details Area
Data Group Name Now Displayed on Data Entry Screens
In Workflow Manager, for each data group defined in a workflow template, a separate data entry screen is displayed to the requester when submitting a workflow request based on that template. For example, if a workflow template has five data groups, such as in the Data Group Details screen below, the requester will be prompted to submit information on five screens.
Data Groups in a Workflow Template
In Workflow Manager 2017, the data group name is now displayed at the top of the data entry screen, in a drop down list labeled Current Page.
Current Page Field on Data Entry Screen
You can select a page from the list to jump to a different entry screen.
ValidateDataGroup and ValidateRequest Events Were Added to the iPlugin Interface
Note • This feature was tracked in issue IOJ-1824904.
In Workflow Manager 2017, two events were added to the iPlugin interface, which you can now use when writing custom plug-ins:
• | ValidateDataGroup |
• | ValidateRequest |
Note • The IPlugin interface is the interface your custom plug-ins should implement. The interface defines some standard callback methods which will be called by Workflow Manager during the course of workflow request submission and Workflow advancement. Your custom implementation of this plug-in can have custom code to link these events with external systems.
Workflow Manager calls the ValidateDataGroup event when a user clicks the Next button on the initial data entry screen of a Workflow Request. Workflow Manager also calls this event when the user clicks the Submit button on steps that collect a data group later in the workflow.
The ValidateDataGroup event returns the following:
• | Boolean (true/false) value to indicate whether all of the data values are valid. |
• | A set of error messages (strings) to display on the screen. |
If ValidateDataGroup returns a false value to indicate that a data element is invalid, Workflow Manager does not advance to the next screen.
Workflow Manager calls the ValidateRequest event when a user clicks the Submit Request button on the final data entry screen at the beginning of the workflow. If ValidateRequest returns a false value, indicating that at least one value is invalid, Workflow Manager does not advance to the next screen.
Workflow Manager passes the names of the data elements and their values so that the function can validate them. Workflow Manager also displays the error message returned from ValidateRequest and ValidateDataGroup.
Note • For more information on ValidateDataGroup and ValidateRequest, see the Workflow Manager Help Library.
Resolved Issues
This section lists the customer issues that were resolved in the following releases of Workflow Manager:
• | Update 2 |
• | Update 1 |
• | Workflow Manager 2017 |
Update 2
This section lists the customer issues that were resolved in Workflow Manager 2017 Update 2.
Issue |
Description |
IOJ-1835626 |
Email Notifications for certain phases\steps were being sent upon completion to users\Roles when Completed checkbox is Not checked for notifications. |
IOJ-1857638 |
After you create a template and add a new role, the check boxes for the new role is empty by default in the Workflow Phase Permissions. |
IOJ-1800604 |
A specific template (NSR 2) is not being rolled back as the rollback button is not working in the rollback dialog box. |
IOJ-1874263 |
Approval Task step not working as expected, rejecting will advance the step/phase. |
IOJ-1876585 |
There has been a typo found in NormalStep.cshtml and CustomPage.cshtml. |
IOJ-1872509 |
If a user is selected in the auto assignment and run back and forth to complete the phase, the user should be re-selected in the auto assignment. |
Update 1
This section lists the customer issues that were resolved in Workflow Manager 2017 Update 1.
Issue |
Description |
IOJ-1863285 |
Unable to access links from WFM when using a single sign on. |
IOJ-1841457 |
Using the “Application Upload” and “AdminStudio Package Upload” data elements in the same workflow causes a conflict that will not allow the workflow to progress until the original package is deleted. |
Workflow Manager 2017
This section lists the customer issues that were resolved in Workflow Manager 2017:
Issue |
Description |
IOJ-1758828 |
Make the Reports > Application Catalog Reports menu item visible to all users, including users in consumer companies. |
IOJ-1759712 |
Request ability to display only relevant roles when completing a Work Assignment workflow step. |
IOJ-1760484 |
Make it easier and quicker to copy an existing workflow request. |
IOJ-1811140 |
Popup HTML file does not look for files in correct subfolder folder during preview. |
IOJ-1813902 |
Make the Reports > Search Packages menu item visible to all users, including users in consumer companies. |
IOJ-1823608 IOJ-1829610 |
Request to be able to add configurable menu items to the main navigation bar. |
IOJ-1823616 |
Request to be able to add configurable menus items to the Options menu on the Progress tab of the Workflow Request page. |
IOJ-1824904 |
Request to add ValidateDataGroup and ValidateRequest events to iPlugin interface. |
IOJ-1827554 |
Request ability to specify internal name for data elements for use in custom reporting. |
IOJ-1829463 |
When adding contacts as part of a data entry step, request ability to perform a predictive search for contacts from directory service. |
IOJ-1829619 IOJ-1829620 IOJ-1829622 |
Request addition of “time off” functionality to enable users to enter future time off and to enable future time off to be displayed on work assignment screens. |
IOJ-1829634 |
Request to display the workflow step name in the workflow step panel area. |
System Requirements
This section lists the system requirements for Workflow Manager.
• | Workflow Manager Web Server |
• | Workflow Manager / AdminStudio Database Server |
• | File Share Server |
• | Workflow Manager End User Computers |
• | Portal Web Server for Intranet Clients |
• | Portal Web Server for Internet Clients |
• | Workflow Manager System Account Requirements |
Workflow Manager Web Server
The following table lists the system requirements for the Web server that hosts the Workflow Manager Data Web service and the actual Workflow Manager Web site.
Item |
Description |
Processor |
32-bit or 64-bit processor at 2 GHz or greater. Note • Workflow Manager runs in 32-bit mode on a 64-bit OS. |
RAM |
4 GB or greater (8 GB preferred) |
Hard Disk Space |
100 GB or greater |
Operating System |
Windows Server 2008 R2 or later / English base language (Windows Server 2012 preferred) |
IIS |
IIS 7.0 or later |
.NET Framework |
.NET Framework 4.6.1 or later |
ASP.NET |
ASP.NET 4.0.30319 or later |
MSXML |
MSXML 6.0 Note • MSXML is installed by the Workflow Manager installer. |
Workflow Manager / AdminStudio Database Server
This following table lists the recommended system configuration for a Workflow Manager/AdminStudio Application Catalog database server:
Note • While minimum requirements are listed below, the recommended system configuration for a database server is dependent upon the number of users and the number of packages that will be imported into the Application Catalog database
Item |
Description |
|||||||||||||||
Processor |
32-bit or 64-bit processor at 2 GHz or greater |
|||||||||||||||
RAM |
4 GB or greater (8 GB preferred) |
|||||||||||||||
Hard Disk Space |
80 GB or greater |
|||||||||||||||
Operating System |
Windows Server 2008 R2 or later (Windows Server 2012 preferred) |
|||||||||||||||
Database Software |
SQL Server 2008 R2 or later databases, including SQL Server 2012 and SQL Server 2014 (latest version preferred)
Latin1-General, case-insensitive, accent-sensitive, kanatype-insensitive, width-insensitive for Unicode Data, SQL Server Sort Order 52 on Code Page 1252 for non-Unicode data
Note • Before attempting to connect to an existing Microsoft SQL Server, open SQL Server Configuration Manager and make sure that the following three protocols are enabled:
|
File Share Server
This following table lists the system requirements for the machine that stores Workflow Manager’s uploaded source files and the repackaged output files:
Item |
Description |
Processor |
2 GHz or greater |
RAM |
2 GB or greater |
Hard Disk Space |
1 TB or greater |
Operating System |
Windows Server 2008 R2 or later |
Workflow Manager End User Computers
This following table lists the recommended system configuration for a Workflow Manager 2017 end user machine:
Item |
Description |
||||||||||||
Browser |
|
||||||||||||
Monitor Resolution |
1024 x 768 pixels or higher |
Portal Web Server for Intranet Clients
A portal is not required to support Windows NT authentication. You can enable Windows NT authentication directly on the web site.
Single sign-on is only supported when the user that logs into IIS has been imported into the Workflow Manager database using Active Directory. The administrator can either import the complete group or only one user. If a complete group is imported, then all the members of the group can be logged into Workflow Manager using single sign-on.
The system requirements for this machine are the same as for the Workflow Manager Web Server.
Portal Web Server for Internet Clients
For better security and to manage access to the Workflow Manager Web Server, it is recommend to also set up a portal Web server for Internet clients.
If Workflow Manager needs to be accessed over the Internet, it is recommended to set up a portal Web server, residing in a demilitarized zone (DMZ). This Web server:
• | accepts the requests from the Internet clients, |
• | forwards them to the Workflow Manager, |
• | gets responses from the Workflow Manager, and |
• | forwards them to the clients |
You can configure the Workflow Manager to entertain the request only if it is coming from the Portal Web server, and otherwise reject the request. The Portal Web server manages access to Workflow Manager and ensures that clients are not able to access any data or documents without logging in.
The system requirements for this machine are the same as for Workflow Manager Web Server.
Workflow Manager System Account Requirements
The AMS_SYSTEM account on the Workflow Manager server requires the following privileges:
• | IIS_WPG group member—Must be a member of the local IIS_WPG group (or IIS_USRS) on the web server. |
• | Modify permissions on file share—Must have “modify” permissions on the Workflow Manager file share. |
• | Email permissions—Must have permission to send e-mail through the SMTP server. |
• | Active Directory query permission—Must have permission to query Active Directory. |
Legal Information
Copyright Notice
Copyright © 2018 Flexera. All Rights Reserved.
This publication contains proprietary and confidential information and creative works owned by Flexera and its licensors, if any. Any use, copying, publication, distribution, display, modification, or transmission of such publication in whole or in part in any form or by any means without the prior express written permission of Flexera is strictly prohibited. Except where expressly provided by Flexera in writing, possession of this publication shall not be construed to confer any license or rights under any Flexera intellectual property rights, whether by estoppel, implication, or otherwise.
All copies of the technology and related information, if allowed by Flexera, must display this notice of copyright and ownership in full.
Intellectual Property
For a list of trademarks and patents that are owned by Flexera, see http://www.flexerasoftware.com/intellectual-property. All other brand and product names mentioned in Flexera products, product documentation, and marketing materials are the trademarks and registered trademarks of their respective owners.
Restricted Rights Legend
The Software is commercial computer software. If the user or licensee of the Software is an agency, department, or other entity of the United States Government, the use, duplication, reproduction, release, modification, disclosure, or transfer of the Software, or any related documentation of any kind, including technical data and manuals, is restricted by a license agreement or by the terms of this Agreement in accordance with Federal Acquisition Regulation 12.212 for civilian purposes and Defense Federal Acquisition Regulation Supplement 227.7202 for military purposes. The Software was developed fully at private expense. All other use is prohibited.
