Web Services
Workflow Manager 2020
Workflow Manager has a set of web services methods that you can use. For detailed information, see the Integration web services page:
C:\AdminStudioWebComponents_2019\wwwroot\Webservicesroot\Integration.asmx
For example, if you access Workflow Manager using an IP address, such as http://111.22.33.444, you would enter the following URL to open the Integration web services page:
http://111.222.33.444/Webservicesroot/Integration.asmx

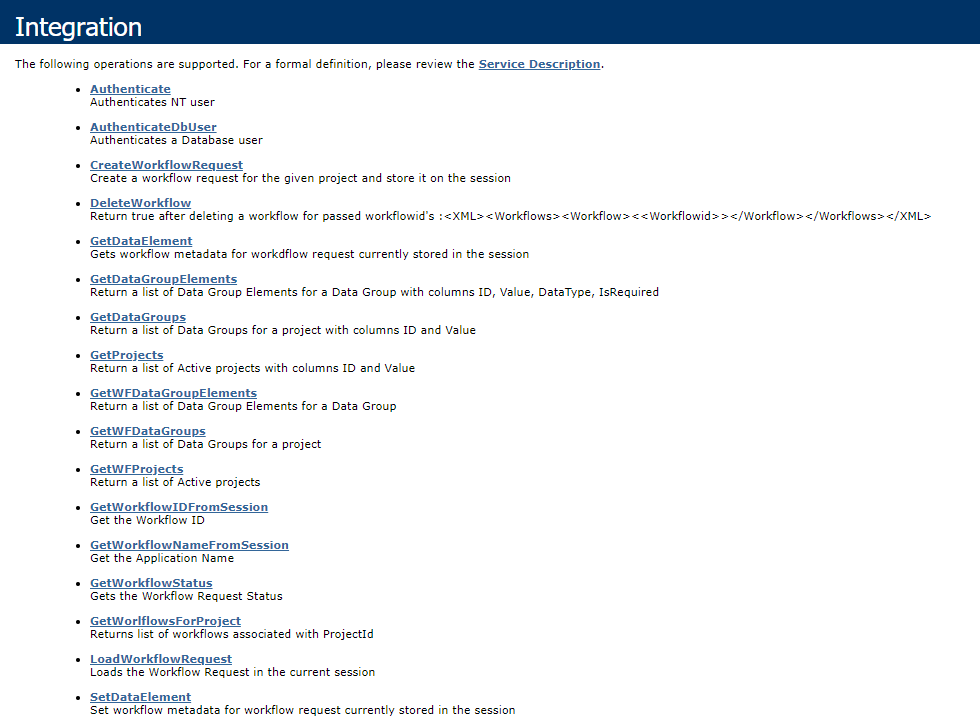

Integration Web Services Page
Clicking on one of these links on the Integration web services page opens a page that provides detailed information on the selected web method:
Information on GetDataGroupElements Web Method
Workflow Manager has the following web services methods:
|
Method |
Description |
|
Authenticate |
Authenticates NT users. |
|
AuthenticateDbUser |
Authenticates database users. |
|
CreateWorkflowRequest |
Creates a workflow request for the given project and stores it on the session. |
|
DeleteWorkflow |
Deletes one or multiple Workflow requests. Before using this Web method, WebServices needs to be authenticated either by Authenticate() / AuthenticateDBuser(). Note:For more information, see DeleteWorkflow. |
|
GetDataElement |
Gets workflow metadata for workflow request currently stored in the session. |
|
GetDataGroupElements |
Returns a list of data group elements for a data group with columns ID, Value, DataType, IsRequired. |
|
GetDataGroups |
Returns a list of data groups for a project with columns ID and Value. |
|
GetProjects |
Returns a list of active projects with columns ID and Value. |
|
GetWFDataGroupElements |
Returns a list of data group elements for a data group. |
|
GetWFDataGroups |
Returns a list of data groups for a project. |
|
GetWFProjects |
Returns a list of active projects. |
|
GetWorkflowIDFromSession |
Gets the workflow ID. |
|
GetWorkflowNameFromSession |
Gets the application name. |
|
GetWorkflowStatus |
Gets the workflow request status. |
|
LoadWorkflowRequest |
Loads the workflow request in the current session. |
|
SetDataElement |
Sets workflow metadata for workflow request currently stored in the session. |
|
SetMultipleDataElements |
Sets values of multiple data elements for multiple data groups of workflow request currently stored in the session. Note:For more information, see SetMultipleDataElements. |
|
SubmitWorkflowRequest |
Submit the application request currently stored in the session |
